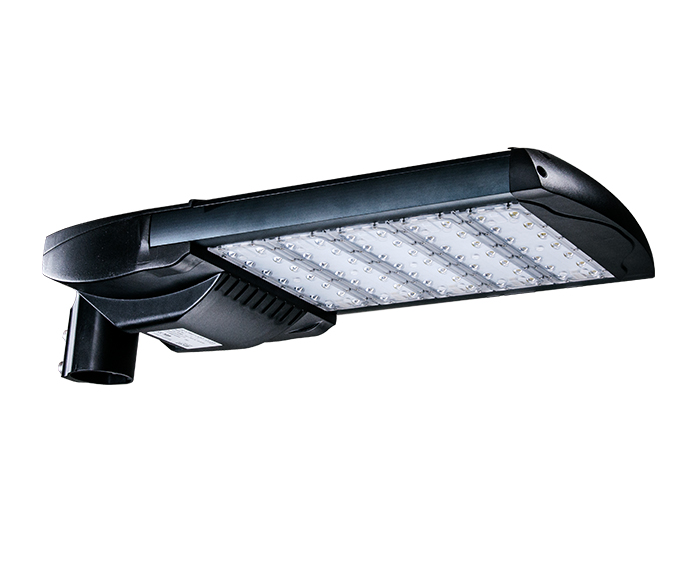

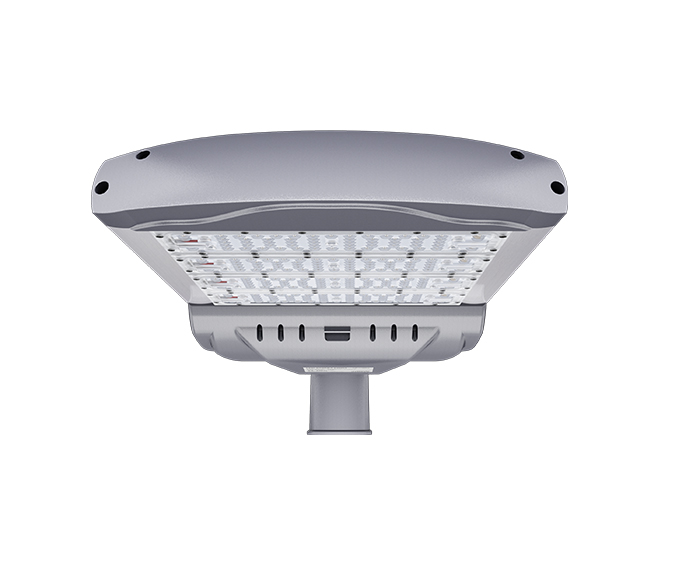

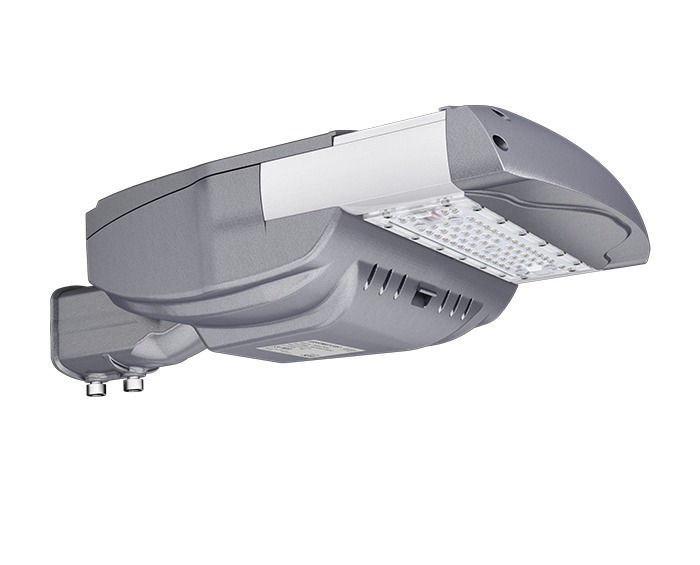

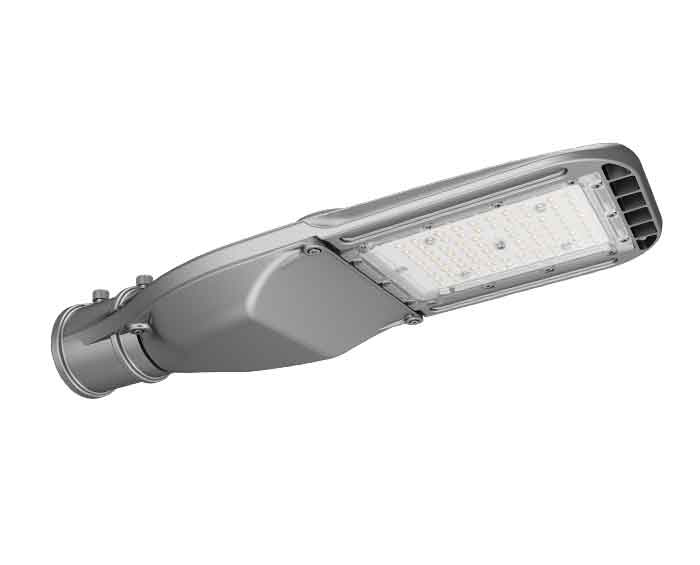

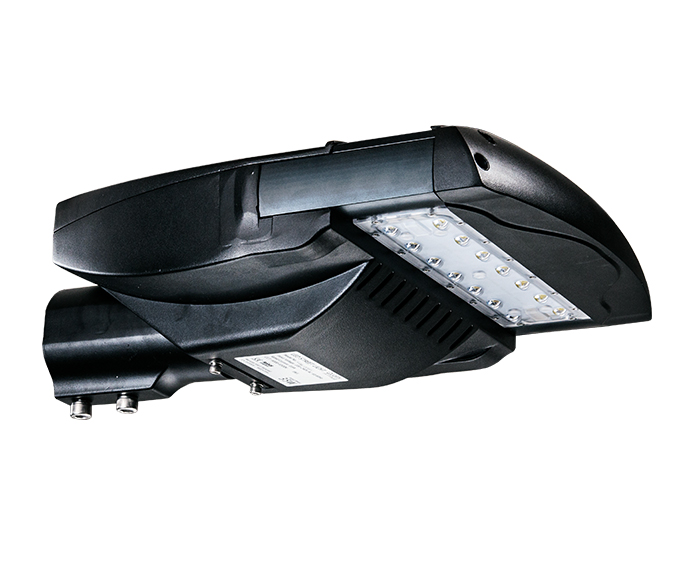

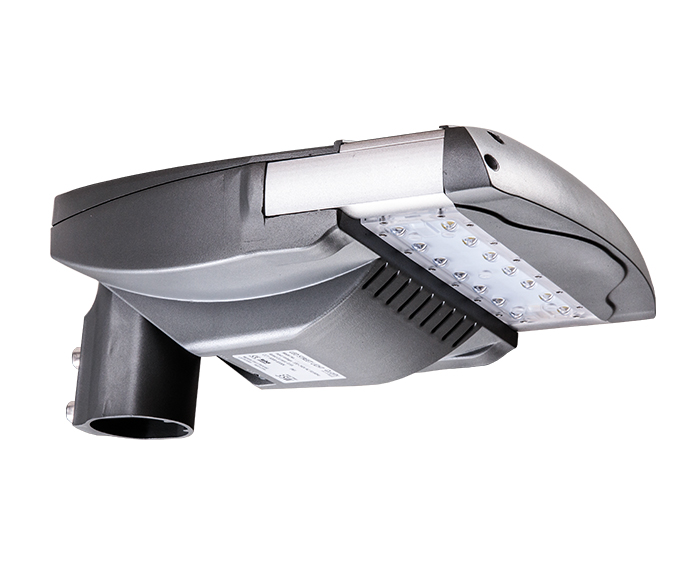

UL and DLC listed 35w Modular Design Parking lot LED Light

We offer a wide range of Parking lot LED lights that offer high-quality lighting solutions for a variety of applications, such as parking lots, parks, campuses, warehouses, or any other large area. Our LED parking lights are available with photocell options to improve energy efficiency.

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 35W~320W.

2. Special circuit design, single LED damage won't affect others' normal work.

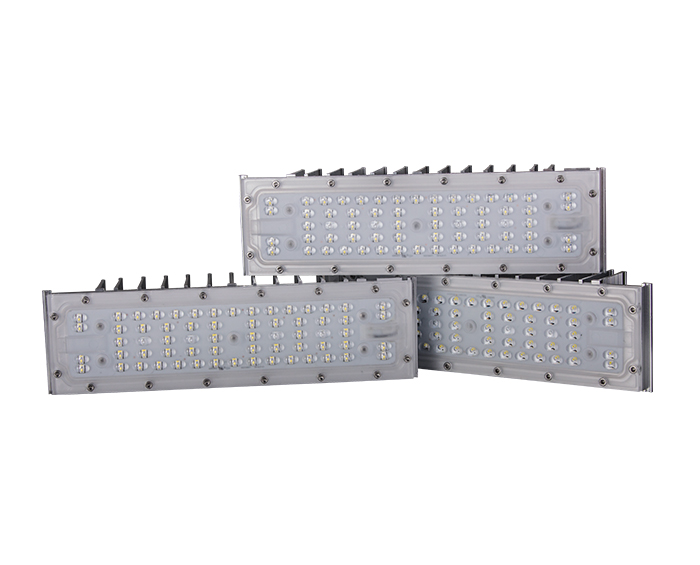

3. Modular design and tool-less open for easy replacement and maintenance.

4. Power-off protection makes the power automatically off when the fixture is opened (optional).

5. Level bubble makes it easy for the installer to adjust the position of the lamp.

6. Breather ensures air balance inside and outside of the driver box of the lamp.

7. High Lumen output up to 165lm/ w with high-quality LED chips.

8. 1000 hours salt spray test report.

9. Vertical and horizontal installation are both available, adjustable by ±15°in both directions.

10. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, and motion sensor.

11. Designed to last at least 100, 000 hours at L70.

12. Multiple lighting distributions are available.

13. CE, ROHS, GS, CB, LM80, FCC, IP66, IK10

14. 7 years warranty


Specifications

ModelZGSM-LD35H
LED BrandLumileds Luxeon TX
Driver BrandMeanwell or Inventronics
Normal Wattage35W
LED Module Quantity1 module
Input Voltage100-240/277VAC/DC12/24V
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>110lm/w
Lamp Rated Lumen output3850 lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature3000K, 4000K, 5000K, or 5700K
Optic (IESNA)Type I Medium; Type II Medium; Type III Medium, TypeV, Short
Optimal Operating Temperature25°
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
BodyDie-cast Aluminum Housing
CoverPC lens
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK10
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE, ROHS, GS, CB, UL, cUL, DLC, LM-79, LM80, SAA
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsSilver or Black
Warranty7 years


FAQ

1. How do I install parking lights?

How to install parking lot lighting

  1. Plan the arrangement of the light poles in the parking lot.

  2. Install underground wires or conduits for each light pole to provide power services.

  3. Lays the foundation for pole installation.

  4. Mount the light pole on its base.


2. What is the voltage of the parking lot lights?

The 480-volt parking light is a high-pressure parking light that works when wiring the parking lights. The higher voltage the engineer uses because it reduces the required number of amperes (amperes = watts/voltage), so the higher the voltage, the lower the amperage.


3. How is parking lot lighting measured?

In the United States, the metric used to measure illuminance is foot candlelight (FC), or lumens per square foot. The corresponding metric unit is one lux (lx), i.e. one lumen per square meter. One foot candle light is approximately equal to 10 lux.
