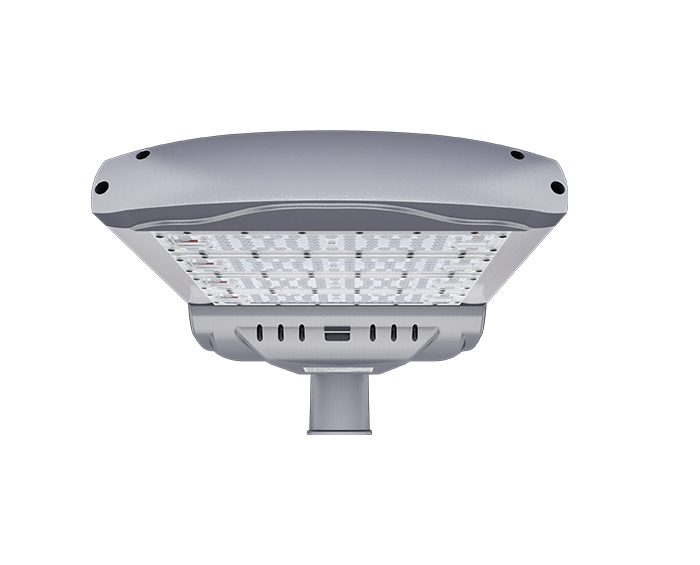

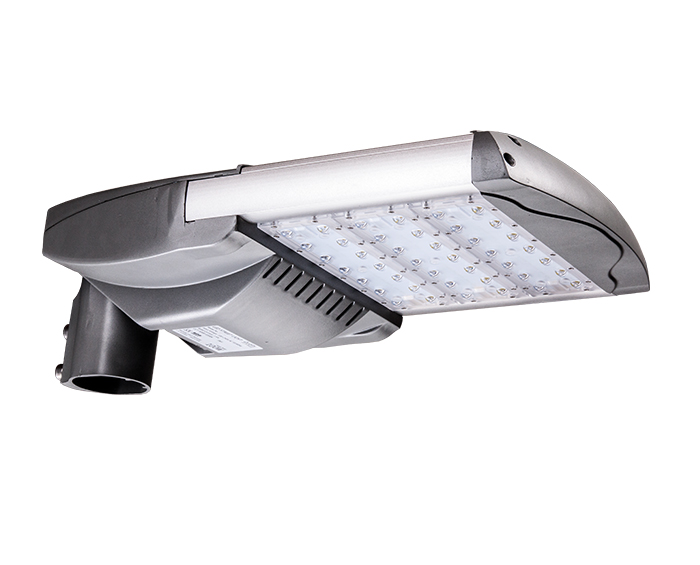

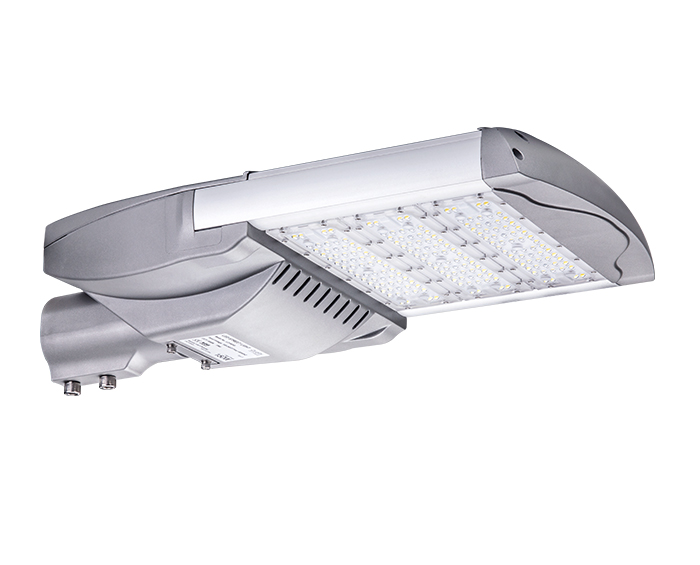

180W Dimmable LED Roadway Light

The 180w led roadway lights are equipped with dimmable light drivers and optional photocells for low energy consumption and green environmental protection. There are two installation methods: horizontal installation and vertical installation, to meet the installation environment of different uses.

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 35W~320W.

2. Special circuit design, single LED damage won't affect others' normal work.

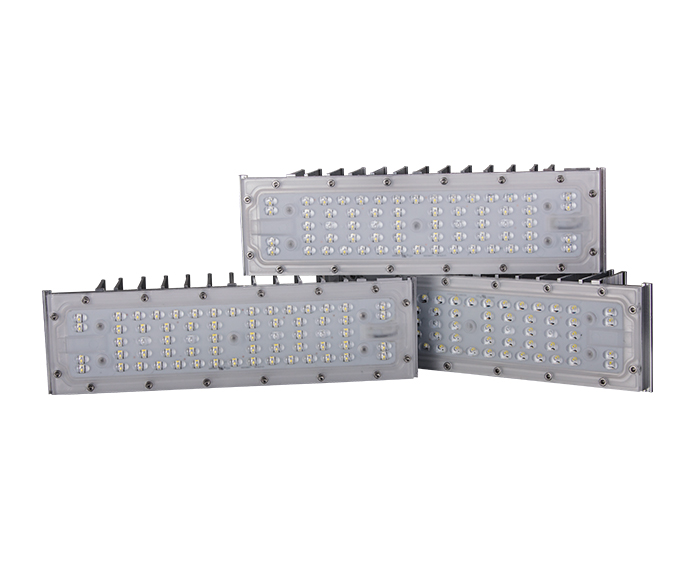

3. Modular design and tool-less open for easy replacement and maintenance.

4. Power-off protection makes the power automatically off when the fixture is opened (optional).

5. Level bubble makes it easy for the installer to adjust the position of the lamp.

6. Breather ensures air balance inside and outside of the driver box of the lamp.

7. High Lumen output up to 165lm/ w with high-quality LED chips.

8. 1000 hours salt spray test report.

9. Vertical and horizontal installation are both available, adjustable by ±15°in both directions.

10. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, and motion sensor.

11. Designed to last at least 100, 000 hours at L70.

12. Multiple lighting distributions are available.

13. CE, ROHS, GS, CB, LM80, FCC, IP66, IK10

14. 7 years warranty


Specifications

ModelZGSM-LD180H6
LED BrandLumileds 3030/5050
Driver BrandMeanwell or Inventronics
Normal Wattage180W
LED Module Quantity3 modules
Input Voltage100-240/277VAC/DC24V
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency125-155 lm/w
Lamp Rated Lumen output22500-27900 lm (Lumen tolerance +/- 5%)
Color Rendering Index70( 80 optional)
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric TypeType I Medium; Type II Medium; Type III Medium, TypeV, Short
Optimal Operating Temperature25°
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
BodyDie-cast Aluminum Housing
CoverPC lens
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK10
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE, ROHS, LM80, LM79, FCC, IP66, IK10
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control

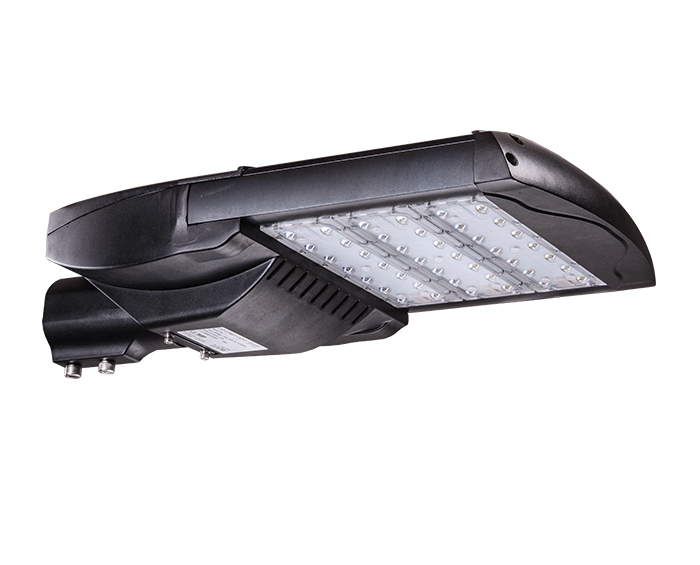

Color OptionsSilver or Black
Warranty7 years



FAQ

1. What are the LED lighting solutions?

LEDs are "directional" light sources, meaning they emit light in a specific direction, unlike incandescent lamps and CFLs, which emit light and heat in all directions. This means that LEDs can use light and energy more efficiently in a variety of applications.


2. Do dimming LED lights consume less power?

Yes, you will save energy

Both methods have pros and cons, but the fact remains that dimmable LEDs are absolutely energy efficient. What's more, the energy savings are proportional to the wattage you choose. If your dimmer is around 50%, you'll save the same percentage of energy.


3. What Is A Round LED Street Light?

The Round LED Street Lights is one kind of LED street lights with a round body design, like ZGSM L series and Halo series. It not only have the same advantages of high efficacy, long lifespan, energy saving as other LED street lights. The elegant housing design also makes it could be applied to city street lighting, garden lighting, community Lighting, residential area lighting and so on.
