Cheap Price 120w Modular Design Road Light

Q: 1. How long do LED street lights last?

Our modular LED street lights are L70>100,000 hours. According to this, it can be used for 20 years. LED lights are 50% more energy efficient than traditional lights and can be used for more than 20 years. There are other unexpected benefits as well. Better street lights could potentially reduce perceptions of danger and improve visibility on the road, making public transit easier.

Q: 3. Which kind of LED lights are best for parking lot lighting?

LED Street Lights, LED Flood Lights and LED High Mast Lights and other kinds of LED lights, which could be installed on the pole and have wide beam angles, are best for parking lot lighting. Choosing LED lights to replace the old HPS or metal halide lamps could not only help to save energy, but also good to our environment.

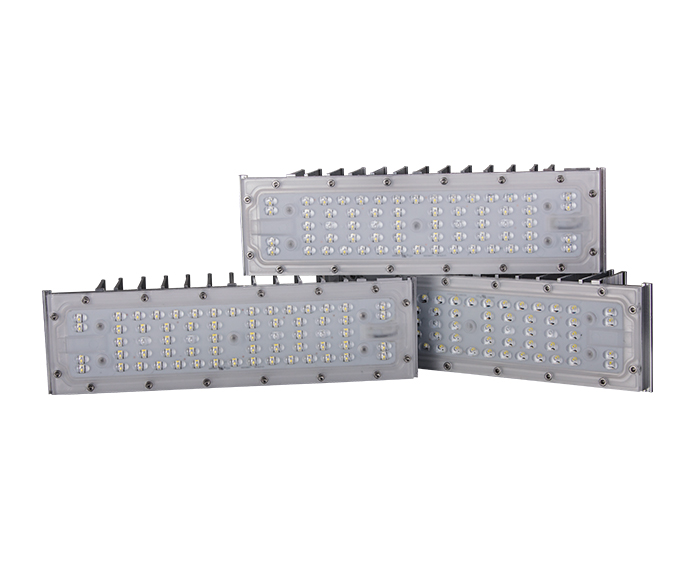

120w modular LED street light is a high-efficiency energy-saving lamp composed of several LED modules. It's mainly used for outdoor roads, communities, parks, streets, and other environments lighting. Our LED Street Lights guarantee a lifetime of 100,000 hours, and also provide you with 7 years of free after-sales service.

Inquire Now Produit suivant

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 35W~320W.

2. Special circuit design, single LED’s damage won't affect others' normal work.

3. Modular design and tool-less open for easy replacement and maintenance.

4. Power-off protection makes the power automatically off when the fixture is opened (optional).

5. Level bubble makes it easy for the installer to adjust the position of the lamp.

6. Breather ensures air balance inside and outside of the driver box of the lamp.

7. High Lumen output up to 165lm/ w with high-quality LED chips.

8. 1000 hours salt spray test report.

9. Vertical and horizontal installation are both available, adjustable by ±15°in both directions.

10. Multiple lighting control options are available, e.g. DALI, 1-10V, photocell, motion sensor.

11. Designed to last at least 100, 000 hours at L70.

12. Multiple lighting distributions are available.

13. CE,ROHS,GS,CB,LM80,FCC,IP66,IK10

14. 7 years warranty

Specifications

Specifications
Model	ZGSM-LD120H6
LED Brand	Lumileds 3030/5050
Driver Brand	Meanwell or Inventronics
Norminal Wattage	120W
LED Module Quantity	2 modules
Input Voltage	100-240/277VAC/DC24V
Power Efficiency	>90%
Power Factor	>0.95
Lamp Rated Luminous Efficiency	125-155 lm/w
Lamp Rated Lumen output	15000-18600 lm (Lumen tolerance +/- 5%)
Color Rendering Index	70( 80 optional）
Color Temperature	3000K or 4000K or 5000K or 5700K
Photometric Type	Type I Medium; Type II Medium; Type III Medium, TypeV, Short
Optimal Operating Temperature	25°
Storage Temperatures	-40°C~50°C
Working Environment	Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion	< 10%
Lumen Maintenance	> 100000 hours -L70, @25 ºC (77 ºF)
Wind Index	Force 12
Body	Die-cast Aluminum Housing
Cover	PC lens
Pole Fitter Diameter	60mm ( 50mm optional)
Rating	IP66 IK10
Protection	Class I ( Class II optional)
SPD	10KV (20KV optional)
Certification	CE,ROHS,LM80,LM79,FCC,IP66,IK10
Dimming Options	1-10V or DALI or PWM or Timer
Control Options	Photocell or Motion sensor or Smart control
Color Options	Silver or Black
Warranty	7 years

FAQ

1. How long do LED street lights last?

Our modular LED street lights are L70>100,000 hours. According to this, it can be used for 20 years. LED lights are 50% more energy efficient than traditional lights and can be used for more than 20 years. There are other unexpected benefits as well. Better street lights could potentially reduce perceptions of danger and improve visibility on the road, making public transit easier.

2. What voltage are LED street lights?

The most frequent operating voltage for streetlights was 120 volts (62 percent), followed by 240 volts (28 percent ). The majority of entities that own streetlights (82 percent) employ individual photocells to operate the streetlight's on/off function.

3. Which kind of LED lights are best for parking lot lighting?

LED Street Lights, LED Flood Lights and LED High Mast Lights and other kinds of LED lights, which could be installed on the pole and have wide beam angles, are best for parking lot lighting. Choosing LED lights to replace the old HPS or metal halide lamps could not only help to save energy, but also good to our environment.
