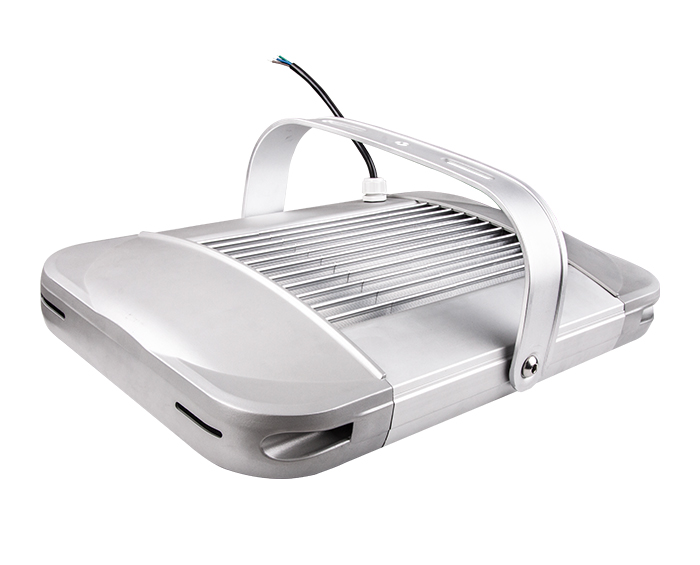

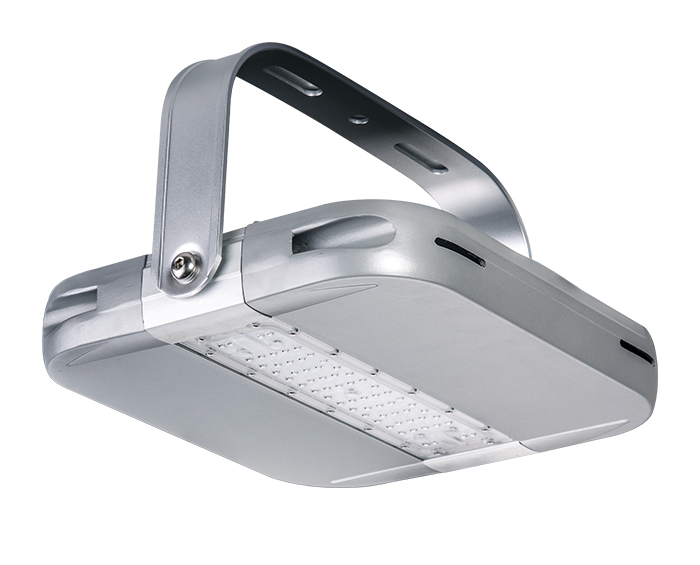

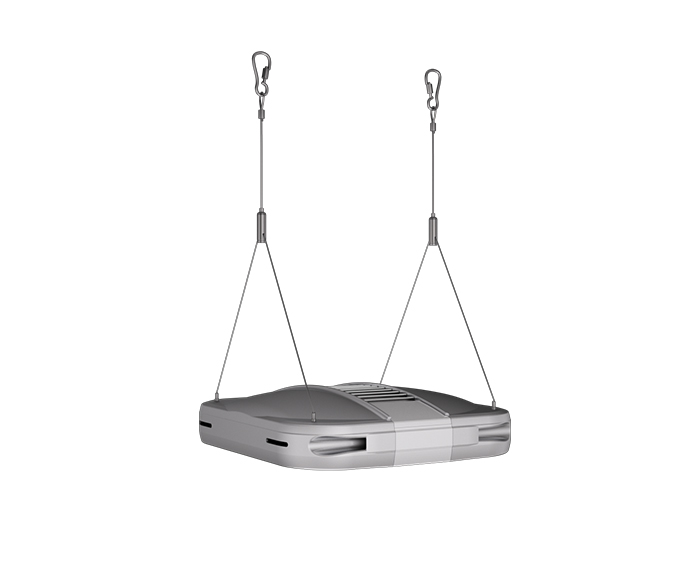

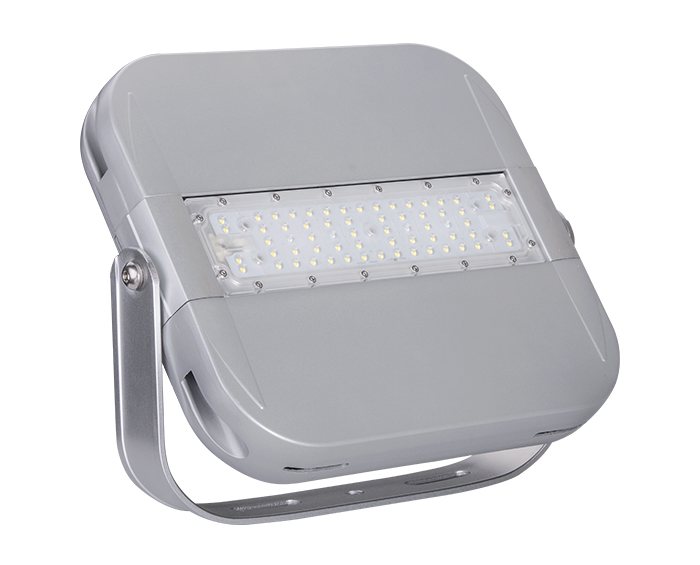

Suspended 40w Modular Design Linear High Bay LED Lights

Linear High Bay LED Lights are rectangular in shape and cast light in a linear rectangular pattern. Provides a wide range of linear high bay lighting for shops, industrial environments, and other commercial properties. LED linear high bay light is a one-to-one replacement for fluorescent lamps in high ceiling locations.

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 40W~360W.

2. Special circuit design, single LED damage won't affect others' normal work.

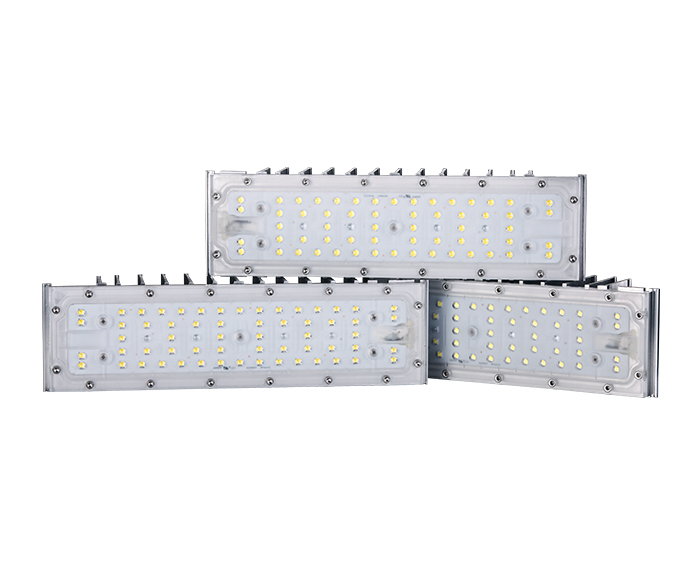

3. Modular design for easy installation, replacement, and maintenance.

4. High Lumen output up to 165lm/ w with high-quality LED chips.

5. Various applications with different mounting Accessories.

6. Multiple lighting control options are available, e.g. DALI, 1-10V, and motion sensor.

7. Designed to last at least 100, 000 hours at L70.

8. Multiple lighting distributions are available.


Specifications

ModelZGSM-GCD40H4
LED BrandLumileds LUXEON 3030/5050
Driver BrandMeanwell HLG series
Normal Wattage40W
LED Module Quantity1 module
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency140-165 lm/w
Lamp Rated Lumen output5600-6600 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyDie-cast Aluminum Housing
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE, ROHS, LM80
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years

FAQ

What is a Linear High Bay Lights?

Linear high-bay luminaires are used to illuminate large indoor areas with higher ceilings (typically 20 to 45 feet from the floor). The large space between the ceiling and the floor requires linear high bay lamps to provide high lumen output, and light needs to be focused downward from the luminaire. In contrast to other types of circular or "bell-shaped" sheds, linear sheds tend to be rectangular. They can be mounted directly on the ceiling or suspended with chains or cables.


How high should high bay lights be mounted?

10-15 feet – This height is ideal for lamps from 10,000 to 15,000 lumens. 15-20 feet – This height is ideal for lamps from 16,000 to 20,000 lumens.
