LED Street Light

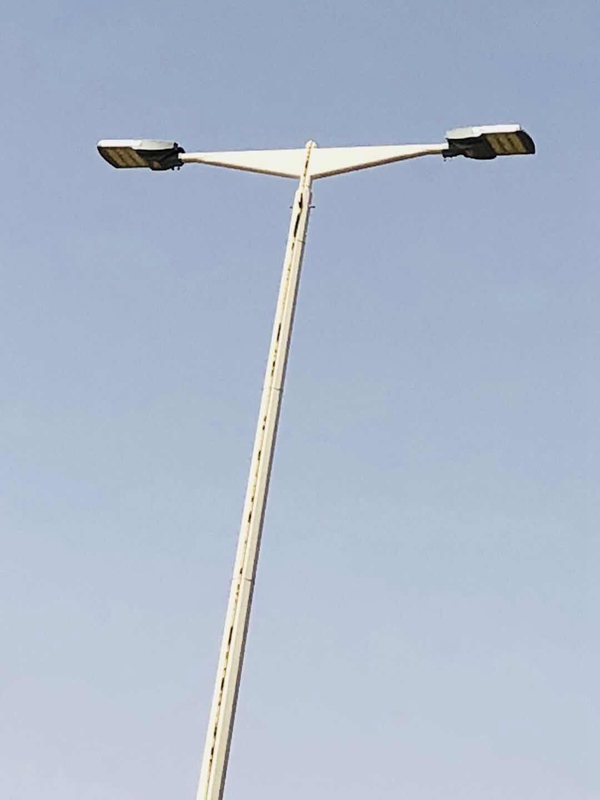

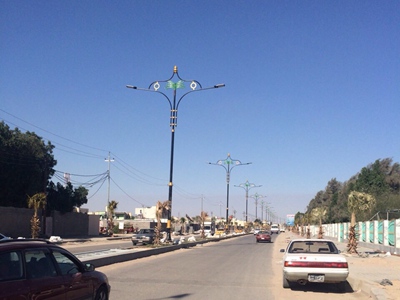

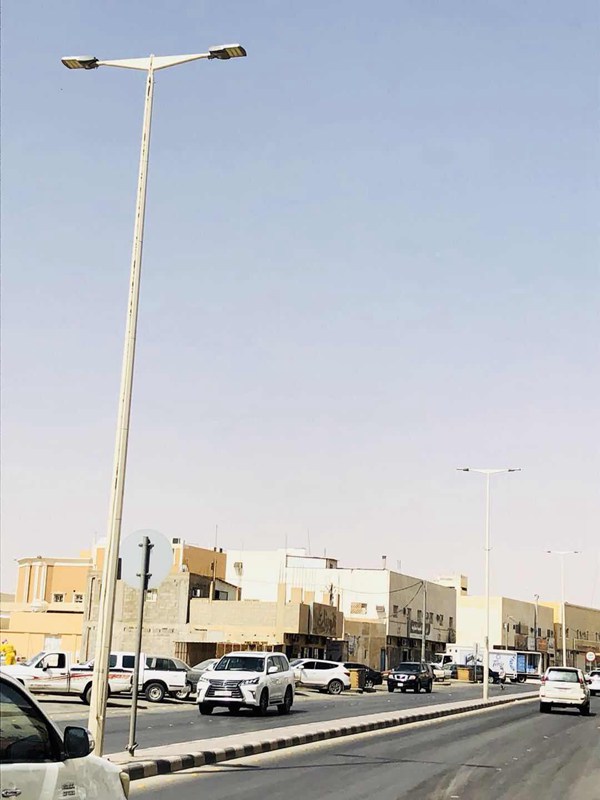

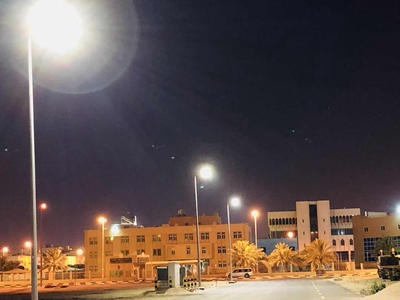

The city street lighting project in Saudi Arabia was completed in 2016. This project used 298 units of 120W H4 Series and 152 units of 150W H5 series LED streetlights. H series LED streetlight has a good heat dissipation design, allowing it to work in the countries with hot weather, such as Saudi Arabia, The UAE, Mexico, Cameroon, and so on. The modular design with gaps between each module could increase heat dissipation speed and solve the problem of dust, sand, or water deposition. The clients highly praise the high quality of our LED street light because there isn't any broken feedback about this project so far. And it's easy to maintain our these LED street lights. We provide 7 years warranty for our H series LED streetlights.

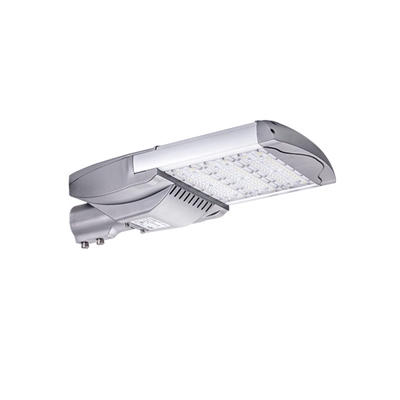

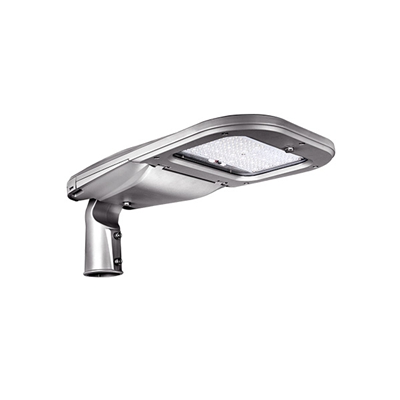

Products: 120W & 150W LED Street Light
Model No.: ZGSM-LD120H4 & ZGSM-LD150H5
LED: Lumileds 3030
Driver: Meanwell
CCT: 5700K
Optics: Type 2M
QTY: 450 Units
| Model | ZGSM-LD150H5 |
| LED Brand | Lumileds 3030 /5050 |
| Driver Brand | Meanwell or Inventronics |
| Normal Wattage | 150W |
| LED Module Quantity | 3 modules |
| Input Voltage | 100-240 /277VAC /DC24V |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 130-160 lm/w |
| Lamp Rated Lumen output | 19500-24000 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70( 80 optional） |
| Color Temperature | 3000K, 4000K, 5000K, 5700K |
| Photometric Type | Type I Medium;Type II Medium; Type III Medium, TypeV, Short |
| Optimal Operating Temperature | 25° |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100000 hours -L70, @25 ºC (77 ºF) |
| Wind Index | Force 12 |
| Body | Die-cast Aluminum Housing |
| Cover | PC lens |
| Pole Fitter Diameter | 60mm ( 50mm optional) |
| Rating | IP66 IK10 |
| Protection | Class I ( Class II optional) |
| SPD | 10KV (20KV optional) |
| Certification | CE, ROHS, ENEC, CB, LM80, LM79, FCC, IP66, IK10 |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Photocell or Motion sensor or Smart control |
| Color Options | Silver or Black |
| Warranty | 7 years |
Installation Manual_StreetLight_H.pdf
 |  |  |
| LED Street Light Procurement Skills | ||
 |  |  |
| LED Street Light System Installation Process |
LED means Light-emitting diodes. These are electronic components that use the passage of electrons within the diode's substance to directly transform electrical energy into light. LEDs are significant because they are starting to replace the majority of traditional light sources thanks to their efficiency and low energy consumption.
The most frequent operating voltage for streetlights was 120 volts (62 percent), followed by 240 volts (28 percent ). The majority of entities that own streetlights (82 percent) employ individual photocells to operate the streetlight's on/off function.
We could provide 3000K, 4000K, 5000K, 5700K and 6500K for your options. The color you choose is influenced by your personal preferences, but it is mostly determined by the purpose for which it will be utilized. The color temperature we sold most are these 3 kinds as below:
3000K: It is a warm color that is often used in restaurants and residences.
4000K: It is a natural color that works well in workplaces and conference rooms.
5000K: It is the most common color, which provides a cool white color close to sunshine. It works best in large spaces or outdoors.
