LED Parking Lot Light Project in the USA

The LED parking lot lighting project in the USA was finished in 2015. It selected 71pcs 100W & 78pcs 200W H series modular design LED street lights with UL & DLC certificates, which is compliant with North American market standards. Every LED street light is equipped with a Meanwell driver including a built-in 6KV SPD and an extra 10KV/20KV SPD, which could protect the lamps from lightning or surge currents. The housing color of our H series street LED light supports customization to suit the requirements of different poles or usage environments.


Products Details


Products: 100W & 200W LED Street Light, UL Standard

Model No.: ZGSM-LD100H & ZGSM-LD200H

LED: Lumileds Luxeon TX

Driver: Meanwell

CCT: 5000K

Optics: Type 3M

QTY: 149 Units


Video

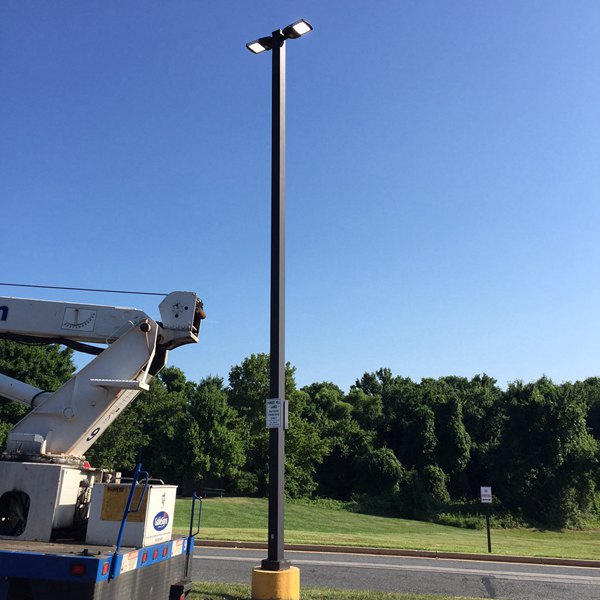

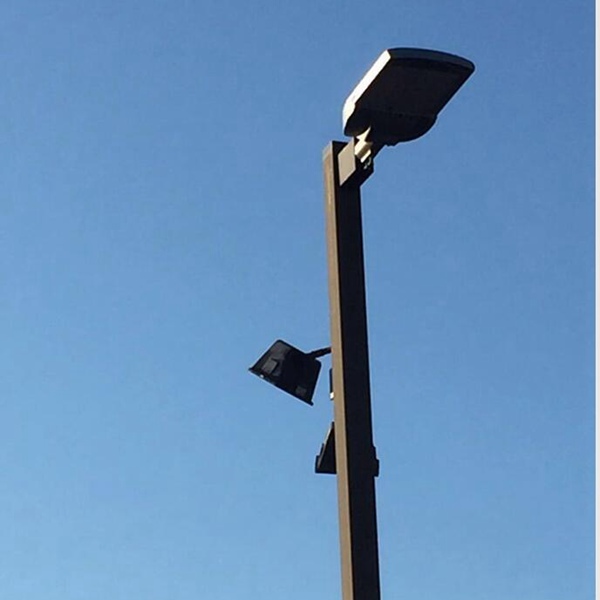

Project Photos


LED Parking Lot Light Project in the USALED Parking Lot Light Project in the USA


Specification


ModelZGSM-LD100H
LED BrandLumileds Luxeon TX
Driver BrandMeanwell or Inventronics
Norminal Wattage100W
LED Module Quantity3 modules
Input Voltage100-240/277VAC/DC24V
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>110lm/w
Lamp Rated Lumen output11000 lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature3000K or 4000K or 5000K or 5700K
Photometric TypeType I Medium;Type II Medium;Type III Medium,TypeV,Short
Optimal Operating Temperature25°
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
BodyDie-cast aluminum Housing
CoverPC lens
Pole Fitter Diameter60mm ( 50mm optional)
RatingIP66 IK10
Protection Class I ( Class II optional)
SPD10KV (20KV optional)
CertificationCE,ROHS,GS,CB,UL,cUL,DLC,LM-79,LM80,SAA
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsPhotocell or Motion sensor or Smart control
Color OptionsSilver or Black
Warranty7 years


Download


Installation Manual_StreetLight_H.pdf

Data Sheet_LEDStreetLight_H.pdf


Related Products


LED Parking Lot Light Project in the USALED Parking Lot Light Project in the USALED Parking Lot Light Project in the USA

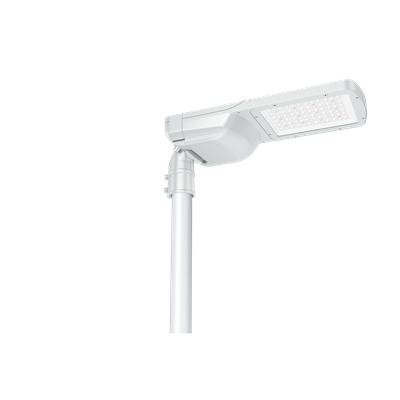

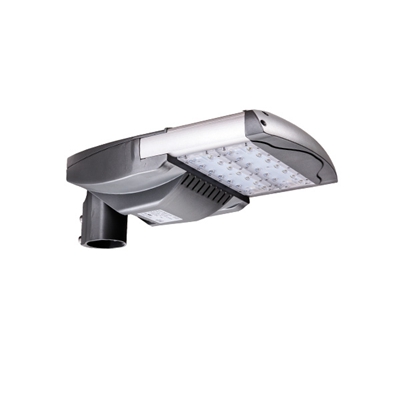

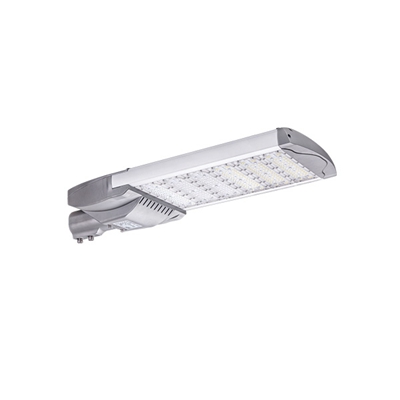

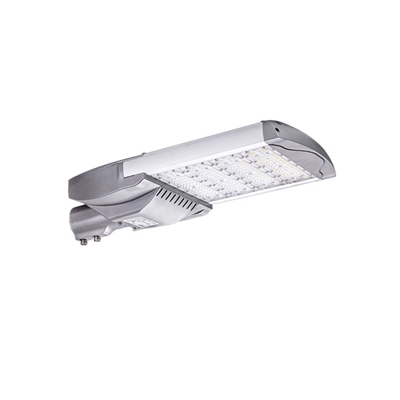

65W UL Approved Car Parking LED Light280W LED ShoeBox Light for Parking LotModular Design 160W Car Parking LED Light
LED Parking Lot Light Project in the USALED Parking Lot Light Project in the USALED Parking Lot Light Project in the USA

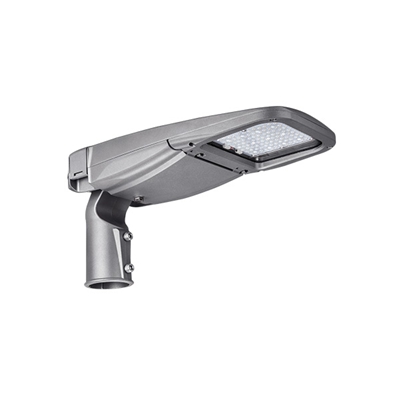

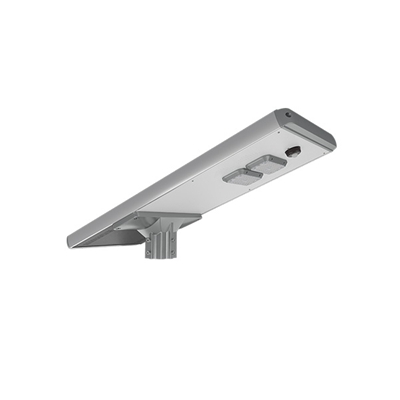

Tool-less 25W ShoeBox Car Park Lighting150 Watt LED Street Light With Motion Sensor50w Solar Powered Parking Lot Lights


Related Projects


LED Parking Lot Light Project in the USALED Parking Lot Light Project in the USALED Parking Lot Light Project in the USA

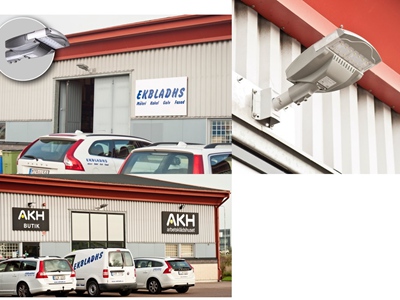

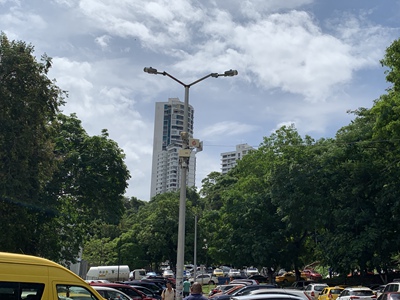

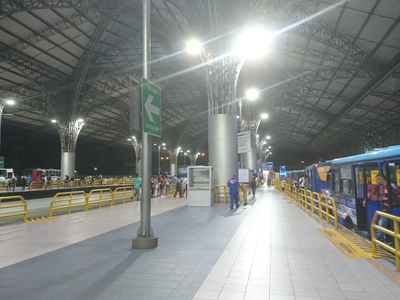

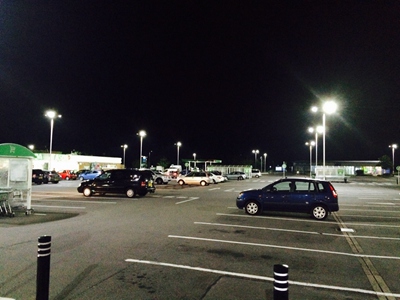

LED Parking Lot Lighting Project in The UKLED Parking Lot Lighting Project in SwedenLED Parking Lot Lighting Project in Ecuador
LED Parking Lot Light Project in the USALED Parking Lot Light Project in the USALED Parking Lot Light Project in the USA

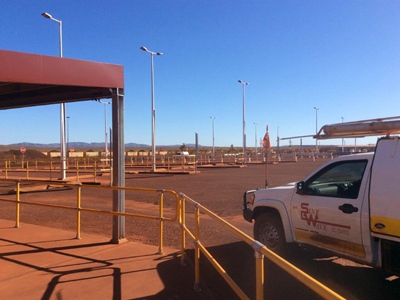

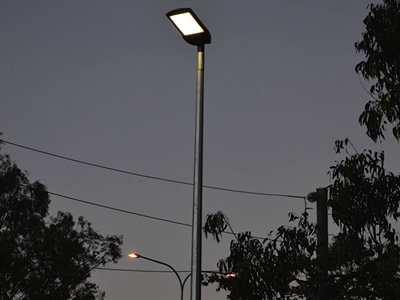

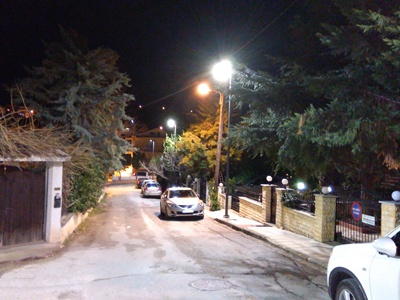

LED Parking Lot Lighting Project in AustraliaLED Parking Lot Lighting Project in GreeceLED Parking Lot Lighting Project in Australia


Related Blog


LED Parking Lot Light Project in the USA

        How To Choose LED Parking Lot Light?


People Also Ask


  1. What is LED parking lot lighting?

    Outdoor lighting that is often mounted on poles and located in parking lots is known as parking lot lighting. For safety, security, and vehicle identification, parking lot and parking area lighting applications require broad, homogeneous illumination.


  2. Which kind of LED lights are best for parking lot lighting?

    LED Street Lights, LED Flood Lights and LED High Mast Lights and other kinds of LED lights, which could be installed on the pole and have wide beam angles, are best for parking lot lighting. Choosing LED lights to replace the old HPS or metal halide lamps could not only help to save energy, but also good to our environment.


  3. Will LED park lot lighting pollute the environment?

    If the lighting application is well-designed, the usage of LEDs does not result in increased light pollution. On the contrary, using well-designed LED street lights for park lot lighting ensures that scatter and glare are efficiently controlled while having a significantly higher impact on decreasing high angle brightness and light pollution.
