What is LED high bay light?

High bay LED lights are designed for higher ceilings, usually 20 to 45 feet, and provide adequate light intensity to be diffused across wide areas or concentrated on specific locations.

What is the difference between LED high bay lights and LED low bay lights?

Reflectors or lenses are used in low bay lighting fixtures to disperse light and reduce glare. To make the light flow down to the floor, a high bay light fixture requires specific reflectors made of aluminum or prismatic components to scatter the light and illuminate shelves and other higher objects.

Why do some high bay LED lights have 7 wires?

Typical high bay LED light fixtures have three, five, or even seven wires coming out of the fixture housing. Two wires, black and white, are used for power, while green is used for ground. 0-10v dimming is available on high bay lights with 5 wires. High bay lights with seven wires are designed to work with 12 volt controllers. The cables are labeled in most cases so you know which ones are for 0-10v dimming and which ones are for 12v controls.

LED High Bay Light Project In Spain

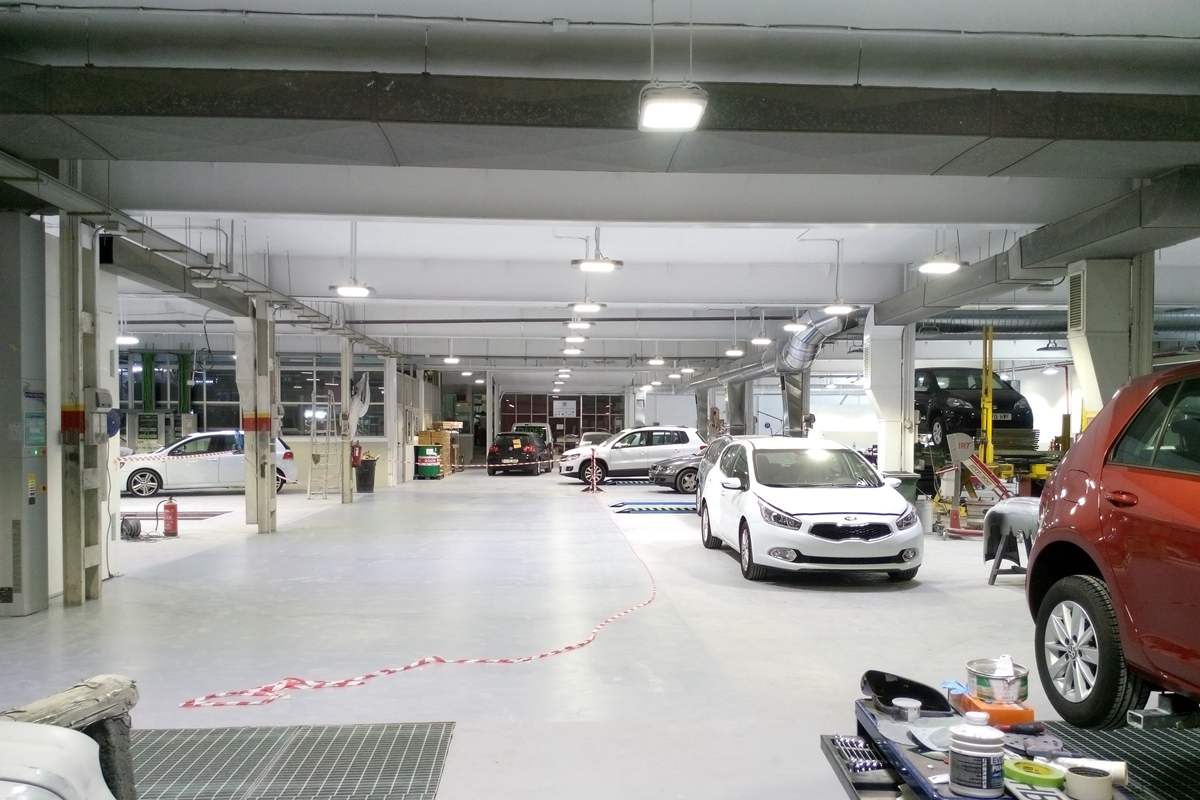

The garage lighting project in Spain was finished in 2015. We provide a lighting solution of 58 pcs 160W H4 series High Bay LED Lights and 2 pcs 200W H5 series LED High Bay Lights to replace 400W old HPS lamps. These LED high bay lamps are suspended mounted by the stainless steel bracket, look nice and solid. All the models of H series high bay lights ranging from 40W to 300W are CE, RoHS, CB, ENEC, SAA, UL, DLC LM-79, and LM-80 certified. It's popular in both European and American markets.

Products Details

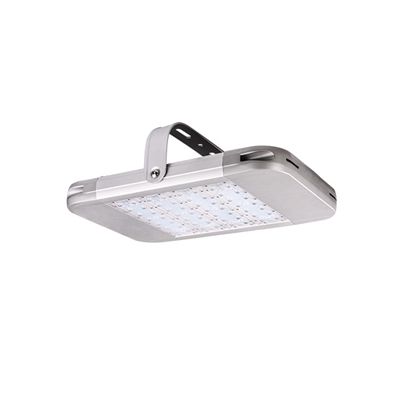

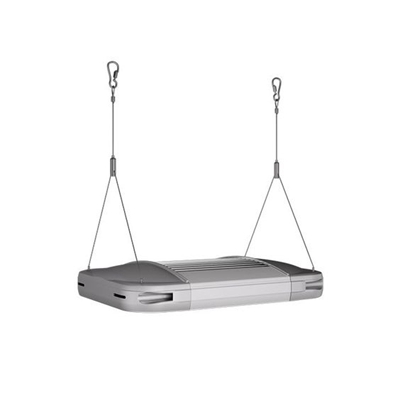

Products: 160W & 200W LED High Bay Light

Model No.: ZGSM-GCD160H4 & ZGSM-GCD200H5

LED: Lumileds 3030

Driver: Meanwell

CCT: 5000K

Optics: 110 degrees

QTY: 60 Units

Video

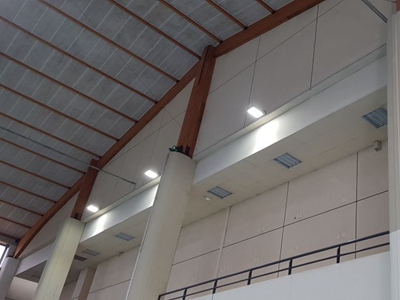

Project Photos

LED High Bay Light Project In Spain

Specification

Model	ZGSM-GCD200H5
LED Brand	Lumileds LUXEON® 3030
Driver Brand	Meanwell HLG series
Normal Wattage	200W
LED Module Quantity	4 modules
Input Voltage	100-240/277/347/480VAC
Power Efficiency	>90%
Power Factor	>0.95
Lamp Rated Luminous Efficiency	>130 lm/w
Lamp Rated Lumen output	26000 lm (Lumen tolerance +/- 5%)
Color Rendering Index	Ra>70
Color Temperature	3000K, 4000K, 5000K, or 5700K
Photometric Type	60,90,110 degrees
Optimal Operating Temperature	25℃
Storage Temperatures	-40°C~50°C
Working Environment	Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion	< 10%
Lumen Maintenance	> 100,000 hours -L70, @25 ºC (77 ºF)
Body	Die-cast Aluminum Housing
Cover	PC lens
Rating	IP66 IK10
Protection	Class I ( Class II optional)
Certification	CE,ROHS,GS,CB,UL,cUL,DLC,LM-79
Dimming Options	1-10V or DALI or PWM or Timer
Control Options	Motion sensor or Smart control
Color Options	Silver
Warranty	7 years

Download

Installation Manual_HighBay&Flood&TunnelLight_H.pdf

Data Sheet_HighBay&Flood&TunnelLight_H.pdf

Related Products

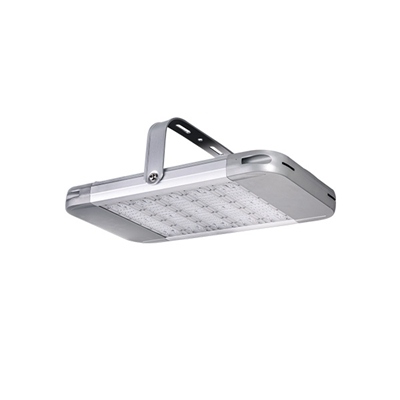

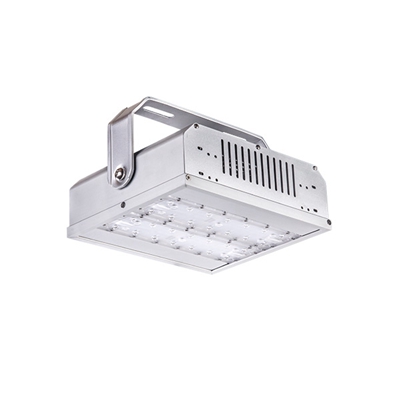

IP66 IK10 160W UL High Bay Light	200W LED Warehouse Lighting	240w Modular Design LED High Bay Light

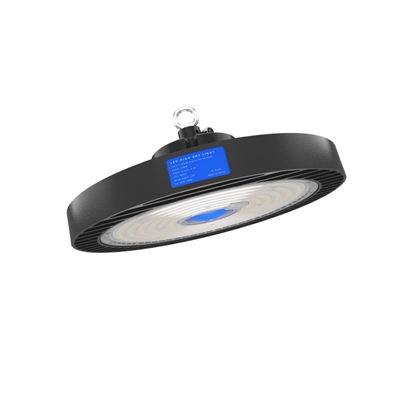

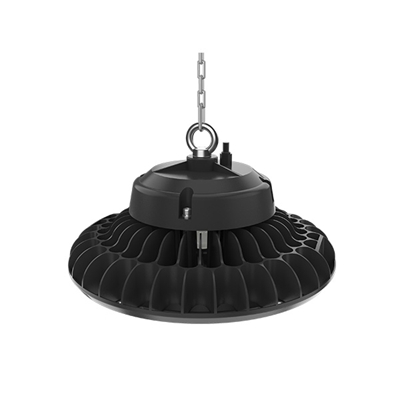

80W UL DLC Certified High Bay LED Lighting	160W UFO High Bay Light	CE RoHS 200W UFO LED High Bay Light

Related Projects

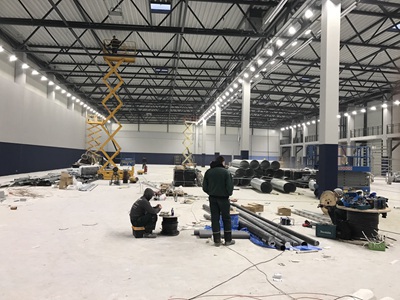

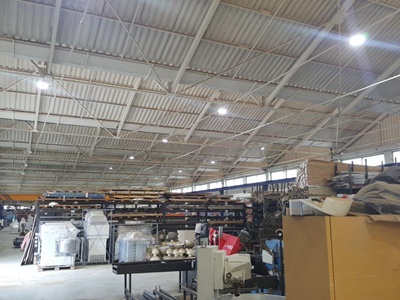

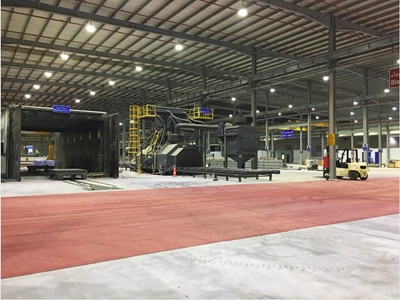

LED High Bay Light Project In Hungary	LED High Bay Light Project In UAE	LED High Bay Light Project In Bulgaria

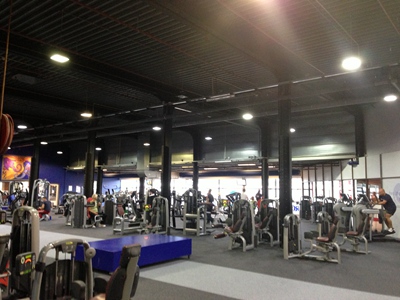

LED High Bay Light Project In France	LED High Bay Light Project In Netherlands	LED High Bay Light Project In Croatia
