LED High Bay Light

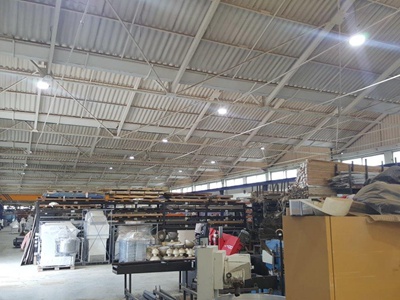

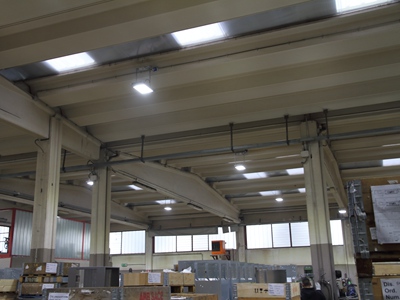

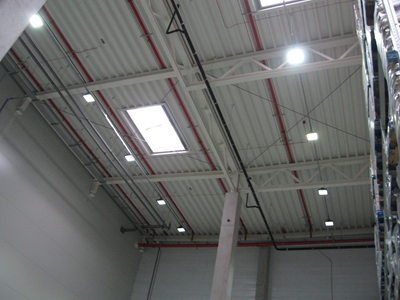

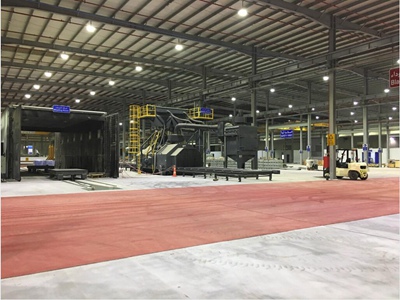

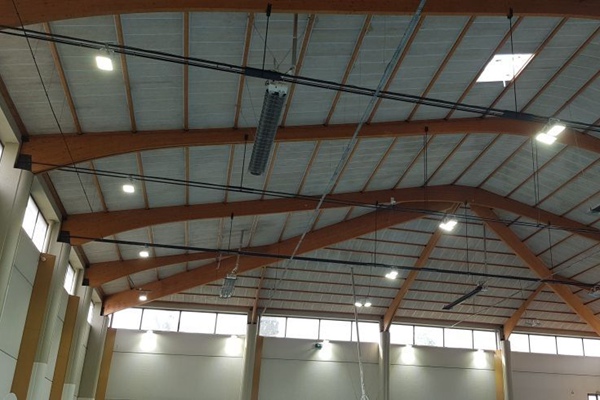

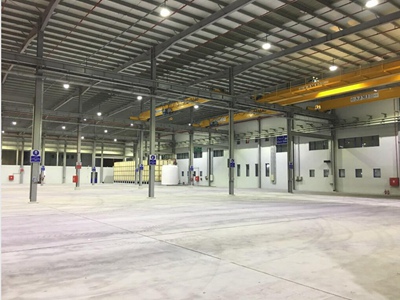

LED high bay lighting project for factory workshop in France, which was finished in 2015. This project uses 30 units of 160W and 10 units of 240W HB series LED high bay lighting fixtures with DALI dimming function. We could controll all the high bay lighting fixtures by a controller or a control panel or software on PC and mobile phone. What's more, we could also monitor the real-time working status of every LED high bay light. Our client highly praised the solutions we offer.

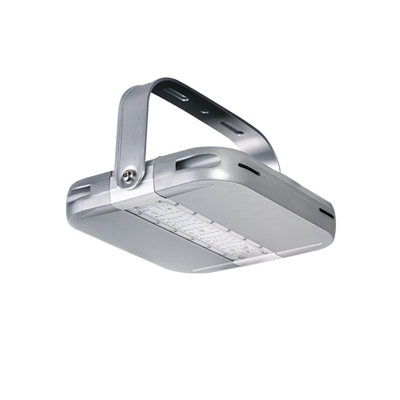

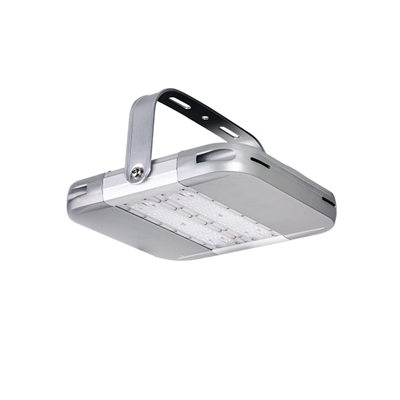

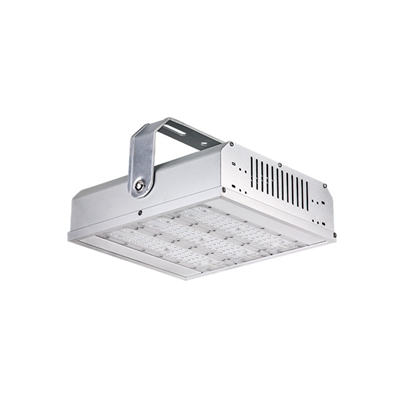

Products: 160W & 240W LED High Bay Light
Model No.: ZGSM-GCD160H4B & ZGSM-GCD240H5B
LED: Lumileds
Driver: Inventronics DALI dimmable driver
CCT: 5000K
Optics: 60 & 90 degrees
QTY: 40 Units
| Model | ZGSM-GCD240H5B |
| LED Brand | Lumileds LUXEON 3030/5050 |
| Driver Brand | Meanwell HLG series |
| Norminal Wattage | 240W |
| LED Module Quantity | 5 modules |
| Input Voltage | 100-240/277/347/480VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 130-160 lm/w |
| Lamp Rated Lumen output | 31200-38400 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70 (80 is optional) |
| Color Temperature | 3000K, 4000K, 5000K or 5700K |
| Photometric Type | 60,90,110 degrees |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Body | Stretching Aluminum |
| Cover | PC lens |
| Rating | IP66 IK10 |
| Protection | Class I ( Class II optional) |
| Certification | CE,ROHS,LM-80 |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Motion sensor or Smart control |
| Color Options | Silver |
| Warranty | 7 years |
Installation Manual_HighBay&FloodLight&TunnelLight_HB.pdf
Data Sheet_HighBay&Flood&TunnelLight_HB.pdf
 |  |  |
| Why Does High Bay Light Use LED? | Guide to Buy Led High Bay Light | The Installation Distance Of LED High Bay Light |
 |  |  |
DALI stands for Digital Addressable Lighting Interface. It is a lighting interface system that allows lighting to be controlled more precisely and versatile using a digital signal. The system uses a two-way technique to allow the user to communicate with LED drivers and ballasts, as well as vice versa, using a DALI controller, which is often a computer system with software or a dimming controller.
DALI is also an international lighting communication standard (IEC 62386), which implies that all components of a lighting system labelled with the DALI emblem, even those from different manufacturers, can communicate with one another. This standard was established to ensure that lighting solutions in the industry are compatible and interchangeable.
Reflectors or lenses are used in low bay lighting fixtures to disperse light and reduce glare. To make the light flow down to the floor, a high bay light fixture requires specific reflectors made of aluminum or prismatic components to scatter the light and illuminate shelves and other higher objects.
Reflectors or lenses are used in low bay lighting fixtures to disperse light and reduce glare. To make the light flow down to the floor, a high bay light fixture requires specific reflectors made of aluminum or prismatic components to scatter the light and illuminate shelves and other higher objects.
