LED Flood Light

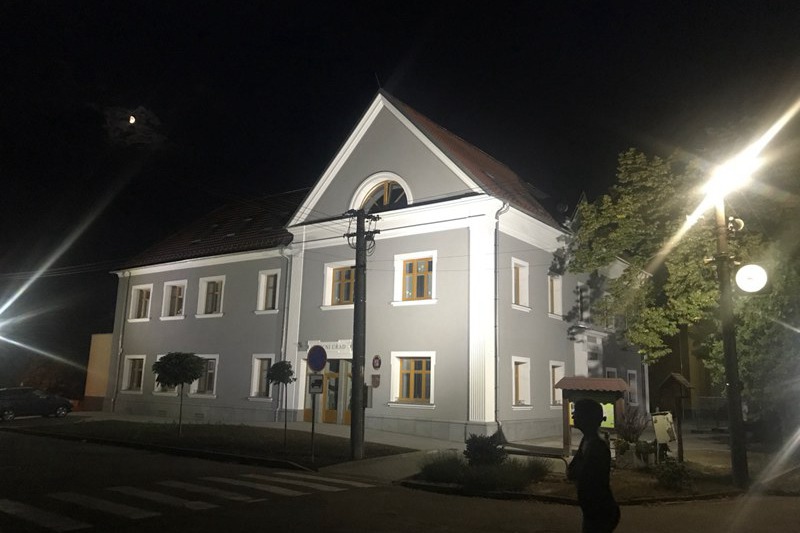

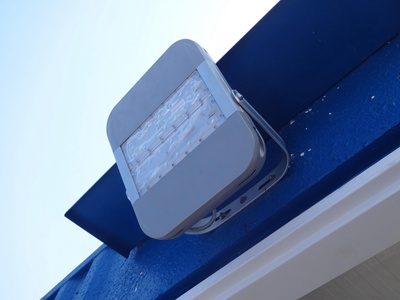

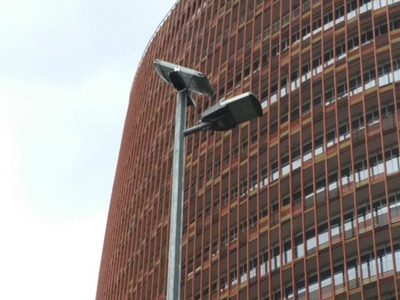

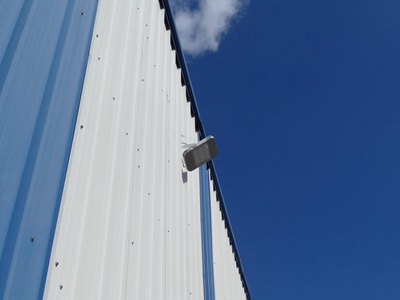

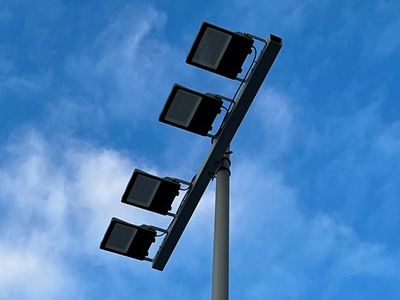

The outdoor LED flood lighting project for building lighting was finished in 2018. There are 8pcs ZGSM HB Series LED flood lights in this project. The adjustable bracket allows you to tilt the flood lights to any angles you require. It's available to mount the LED flood lights on the ground, on the wall, on the poles, or on the ceiling. IP66 & IK10 certified HB series LED flood lights are no problem for both outdoor lighting and indoor lighting. We also have some optional accessories such as the motion sensor, photocell, or remote control to meet your requirements for different applications.

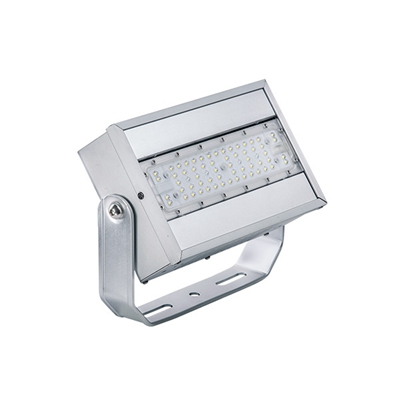

Products: 40W, 80W, 200W LED Flood Lights
Model No.: ZGSM-FGD40H4B, ZGSM-FGD80H4B, ZGSM-FGD200H4B
LED: Lumileds 3030
Driver: Meanwell
CCT: 5000K
Optics: 60 degrees
QTY: 8 Units

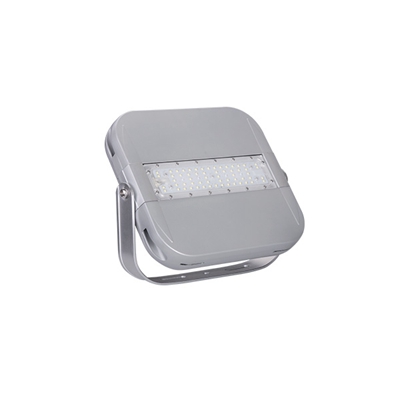

| Model | ZGSM-FGD80H4B |
| LED Brand | Lumileds LUXEON 3030/5050 |
| Driver Brand | Meanwell HLG series |
| Normal Wattage | 80W |
| LED Module Quantity | 2 modules |
| Input Voltage | 100-240/277/347/480VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | 140-165 lm/w |
| Lamp Rated Lumen output | 11200-13200 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | 70 (80 is optional) |
| Color Temperature | 3000K, 4000K, 5000K or 5700K |
| Photometric Type | 60, 90, 110 degrees |
| Optimal Operating Temperature | 25℃ |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 100,000 hours -L70, @25 ºC (77 ºF) |
| Body | Stretching Aluminum |
| Cover | PC lens |
| Rating | IP66 IK10 |
| Protection | Class I ( Class II optional) |
| Certification | CE, ROHS, LM80 |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Motion sensor or Smart control |
| Color Options | Silver |
| Warranty | 7 years |
Installation Manual_HighBay&FloodLight&TunnelLight_HB.pdf
Data Sheet_HighBay&Flood&TunnelLight_HB.pdf
 |  |  |
| What Is LED Flood Light? | LED Flood Light Features And Advantages | Why Are LED Flood Light Popular In The Market? |
 |  |  |
They come with an adjustable mounting bracket that allows you to modify the angle of the deluge. They don't need a pole or a particular mount because of this.
Standard screws and plugs should enough for the installation.
Fitting and wiring instructions are included with our high-quality LED flood lights.

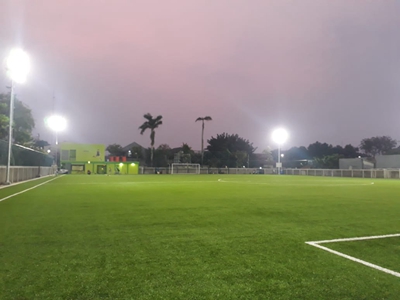

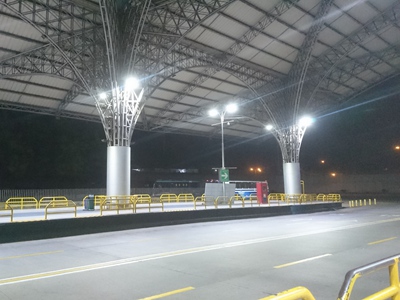

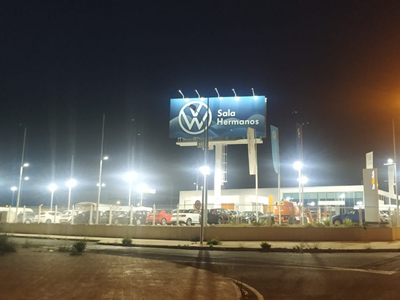

LED Flood lights are utilized in a variety of locations, although they are most commonly employed for outdoor lighting. They are used for home and business security, to emphasize building design or landscapes, in retail to highlight the sign or name of the company, and in sporting stadiums and car parks to light up the field, court, and surrounding area.
Yes, LED flood lights could choose drivers with a function of timer control. The drivers could control the outdoor flood lights to turn to different powers automatically at set working hours.
Need more details about timer or other control functions, pls contact us.

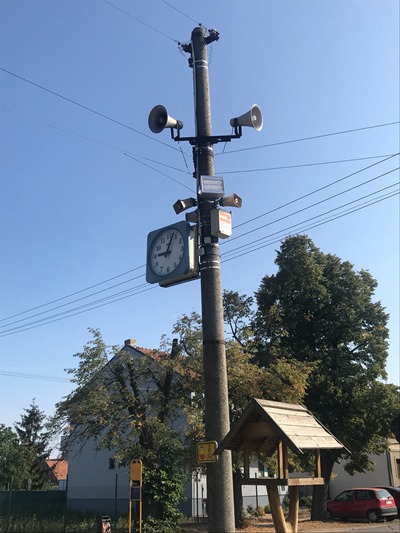

Previous: LED Flood Light Project In Czech
