LED Canopy Light Project in Uruguay

LED canopy lighting project for petrol station in Uruguay, finished in 2009. More than 120 units of 60W H series LED canopy lights were installed in these gas stations. The exquisite and innovative frame holder not only make the installation more simple but also the lamp to be fixed firmer and safer. The color temperature (CCT) of 6000K make the light output white and bright. The efficacy of H series canopy led lights is up to 165lm/W, which could save energy for more than 70% after replacing old outdoor canopy lighting fixtures.


Product Details


Product: 60W LED Canopy Lighting Fixtures

Model No.: ZGSM-QD60H6

LED: Lumileds 3030

Driver: Meanwell

CCT: 6000K

Optics: 110 degrees

Installation Height: 6 meters

QTY: 120 Units


Video

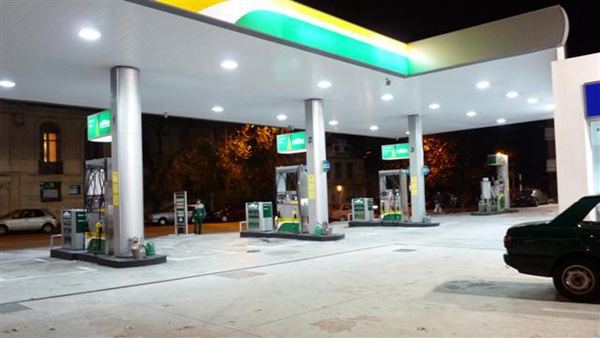

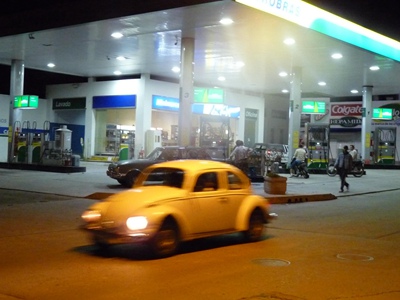

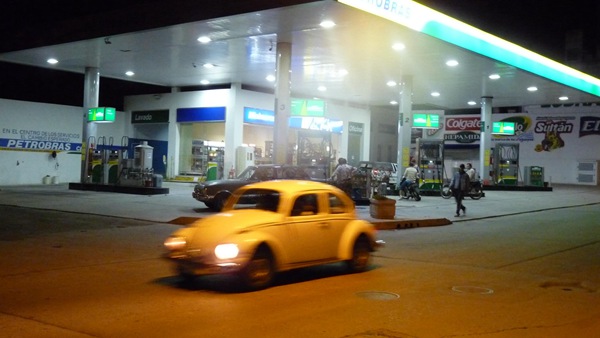

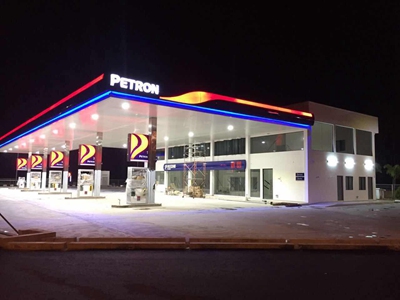

Project Photos


LED Canopy Light Project in UruguayLED Canopy Light Project in Uruguay


Specification


ModelZGSM-QD60H6
LED BrandLumileds LUXEON 3030/5050
Driver BrandMeanwell HLG series
Normal Wattage60W
LED Module Quantity1 module
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency125-155 lm/w
Lamp Rated Lumen output7500-9300 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyStretching Aluminum
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE, ROHS, LM80
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years


Download


Installation Manual_CanopyLightforGasStationLighting_H.pdf

Data Sheet_CanopyLightforGasStationLighting_H.pdf


Related Products


LED Canopy Light Project in UruguayLED Canopy Light Project in UruguayLED Canopy Light Project in Uruguay

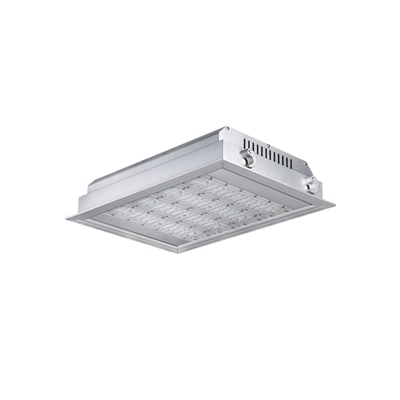

ATEX 80w Gas Station Canopy Lights LEDCE 200W Gas Station LED Canopy FixtureEconomical 240w Gas Station Canopy Lights
LED Canopy Light Project in UruguayLED Canopy Light Project in UruguayLED Canopy Light Project in Uruguay

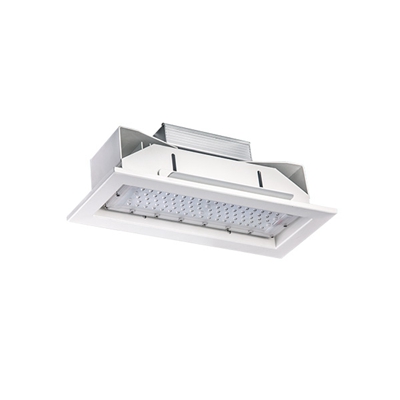

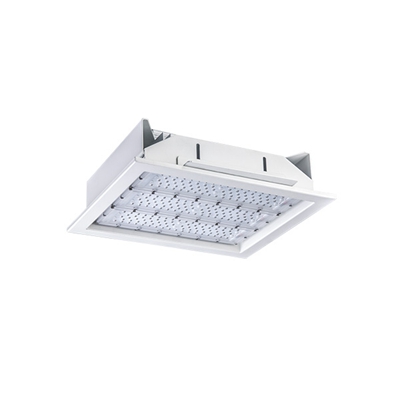

ATEX 50W Recessed Gas Station Lamp40W Recessed Canopy Lights LED
120W Gas Station Canopy Light


Related Projects


LED Canopy Light Project in UruguayLED Canopy Light Project in UruguayLED Canopy Light Project in Uruguay

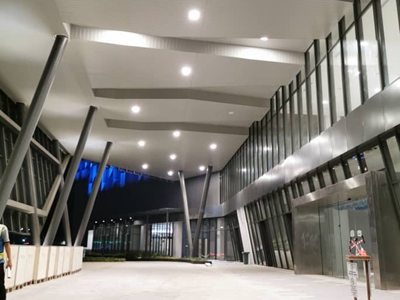

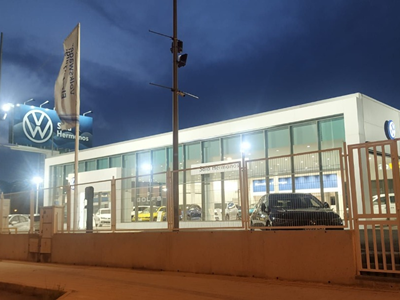

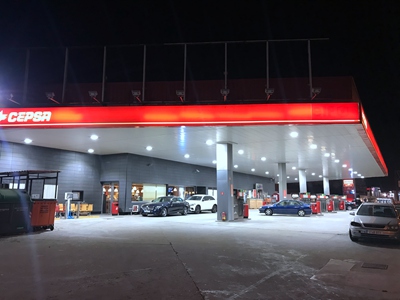

LED Canopy Lighting Project in GhanaLED Canopy Lighting Project in MalaysiaLED Canopy Lighting Project in Spain
