Five Detection Standard Points Of LED Energy-saving Lamp

Dec. 24, 2018

LED energy-saving lamps are a general term for the industry. There are many subdivided products, such as LED Street Lights, LED tunnel lights, LED High Bay Lights, LED fluorescent lights and LED panel lights and so on. The most important thing for a product is quality, and quality control requires reasonable testing methods and standards. Here below we want to share with you five key points of LED energy-saving lamp testing standards:


  1. Drop Test

    According to the requirements of the certain product standard, the product should simulate the drop that may occur during the actual use, which needs to fall from the height of 0.91m to the hardboard. The outer casing of the product should not be broken to expose the dangerous parts inside after the drop test. When the manufacturer chooses the materials of the product casing, this test must be done in advance to avoid the loss caused by mass production failure.


  2. Dielectric Strength

    Dielectric strength refers to the maximum electric field strength that an insulator can withstand without electrical breakdown, that is, to maintain its non-conductive properties. Electrical breakdown occurs when the electric field strength is higher than the dielectric strength of the insulator, the resistance of the insulator drops drastically and becomes conductive.

    If the transparent casing encloses the power module inside, and the transparent casing material must meet the electrical strength requirements. According to the standard requirements, based on the condition of 120 volts in North America, the internal high-voltage live parts and the outer casing (tested with metal foil) should be able to withstand the 1240 volt AC resistance test. Under normal circumstances, the thickness of the product shell reaches about 0.8 mm, which can meet the requirements of this electric strength test.


  3. Insulation Requirements

    Due to the limited internal space of LED lamps, in the structural design, we should pay attention to the insulation requirements between dangerous live parts and accessible metal parts. The insulation can be a space distance and a creepage distance, or it can be an insulating sheet.


    Five Detection Standard Points Of LED Energy-saving Lamp

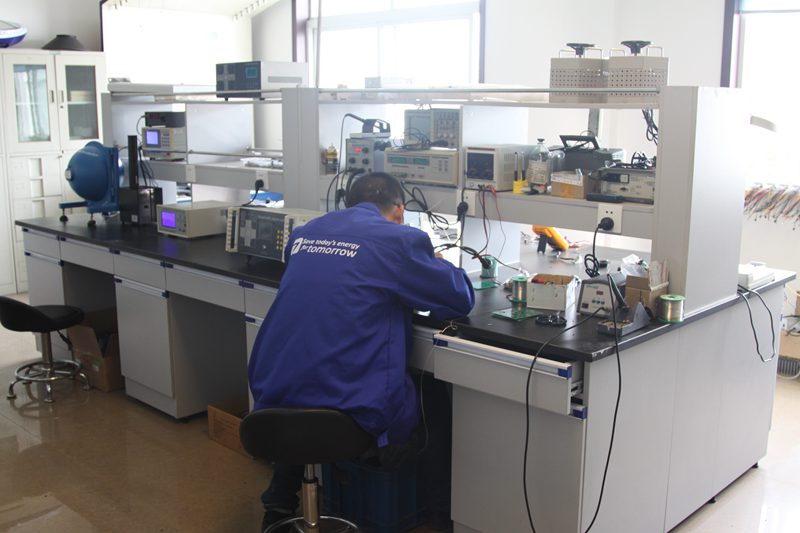

    LED Light Under Test



  4. Temperature Rise Test

    The temperature rise test is a mandatory item for product safety testing. The standard has certain temperature rise limits for different components. In the product design phase, manufacturers should pay great attention to the heat dissipation of the product, especially for certain components (such as insulation sheets). Parts that work under high-temperature conditions for extended periods of time have a risk of changing their physical properties, posing a fire or electric shock hazard.


  5. Fault Test

    Product failure testing is a very necessary test item in product certification testing. This test item is to short-circuit or open some components on the line to simulate the failures that may occur during actual use to evaluate the safety of the product under a single fault condition.


As a professional manufacturer of LED lights with ISO9001, ZGSM has a very complete quality control system. Before production, we carefully check the quality of raw materials, and we will also strictly control the semi-finished products in production. After the lamp production is completed, we will not only test whether every electrical parameters of each product meet customers' requirements, but also have an aging test of 8 to 24 hours to ensure that the working performance of the LED lights before we deliver them out.


Video of IPX6 Test



Related Products


Five Detection Standard Points Of LED Energy-saving LampFive Detection Standard Points Of LED Energy-saving LampFive Detection Standard Points Of LED Energy-saving Lamp

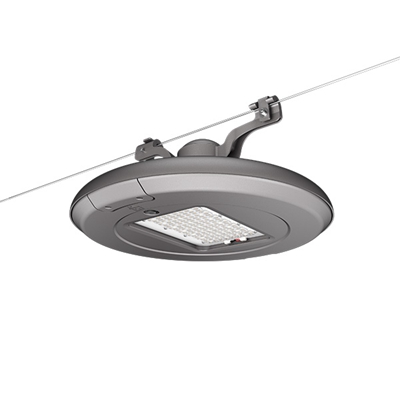

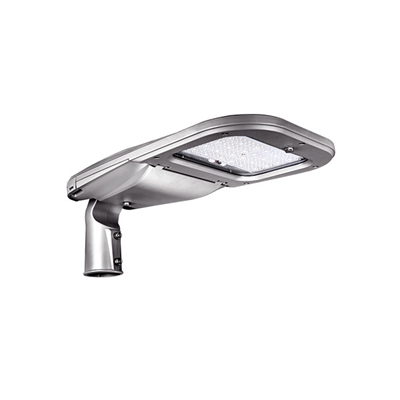

Full Die Casting 90W Tool-less Street Light100w STREET LIGHT With 7 Pin NEMA Socket120w Suspended Mounted LED Street Light
Five Detection Standard Points Of LED Energy-saving LampFive Detection Standard Points Of LED Energy-saving LampFive Detection Standard Points Of LED Energy-saving Lamp

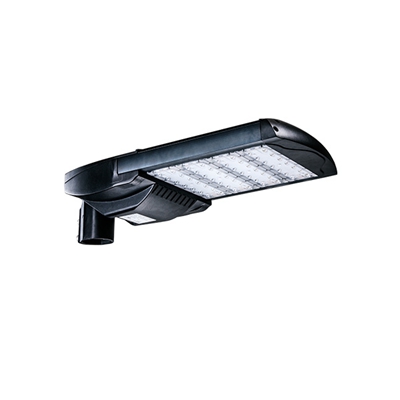

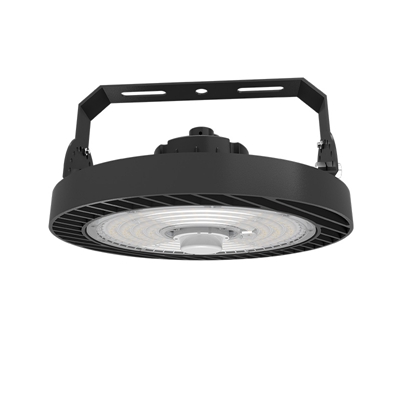

UL and DLC listed 135w Street Light FixturesUFO High Bay 150w with Smart Motion Sensor155lm Per Watt Waterproof LED Flood Light
Five Detection Standard Points Of LED Energy-saving LampFive Detection Standard Points Of LED Energy-saving LampFive Detection Standard Points Of LED Energy-saving Lamp

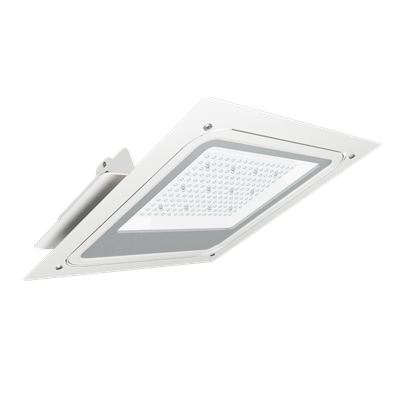

Explosion-proof LED Canopy Lights For Gas Station

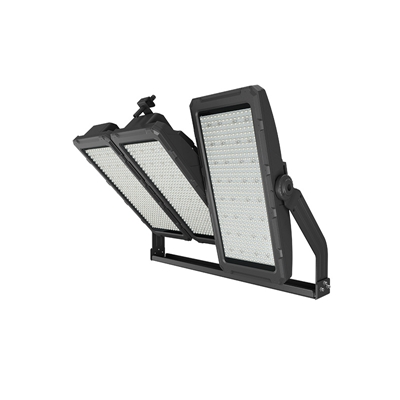

840w High Mast LED Stadium Lights

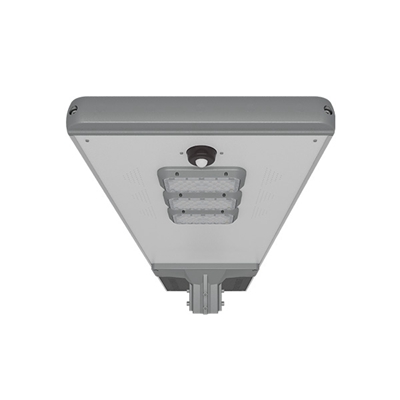

Outdoor IP65 60w Solar Street Light


Related Projects


Five Detection Standard Points Of LED Energy-saving LampFive Detection Standard Points Of LED Energy-saving LampFive Detection Standard Points Of LED Energy-saving Lamp

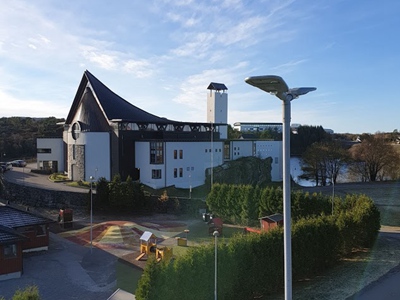

LED Street Light Project In Norway

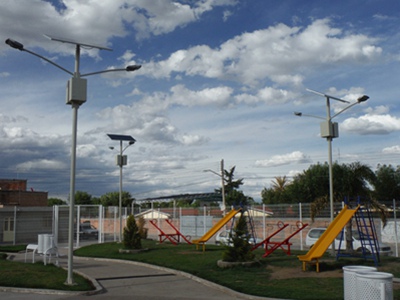

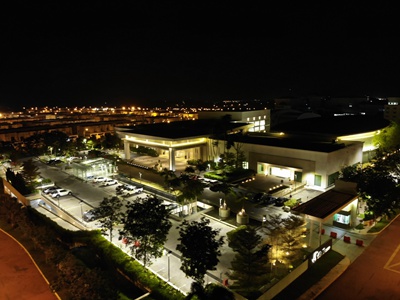

Solar LED Street Light Project In MexicoLED Parking Lot Project In Australia
Five Detection Standard Points Of LED Energy-saving LampFive Detection Standard Points Of LED Energy-saving LampFive Detection Standard Points Of LED Energy-saving Lamp
LED Garden Light Project In Malaysia
LED High Bay Light Project In HungaryLED Flood Light Project In Greece
Five Detection Standard Points Of LED Energy-saving LampFive Detection Standard Points Of LED Energy-saving LampFive Detection Standard Points Of LED Energy-saving Lamp

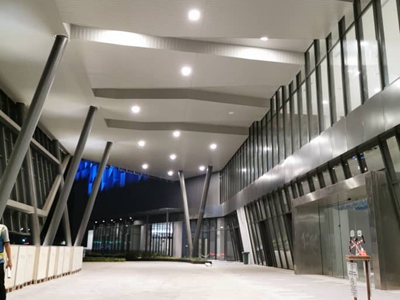

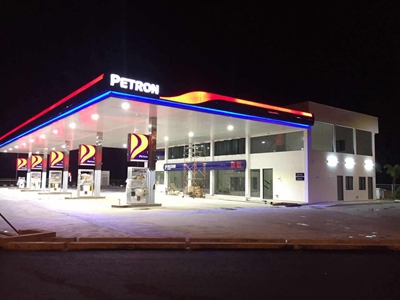

LED Canopy Light Project In Malaysia

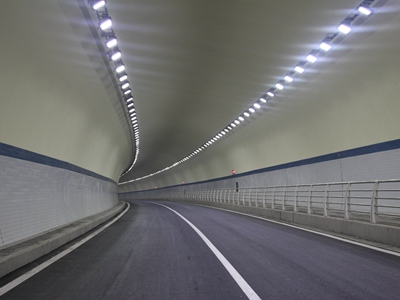

LED Tunnel Light Project In China

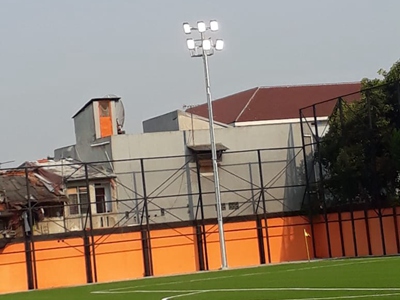

LED Stadium Light Project In The Philippines
