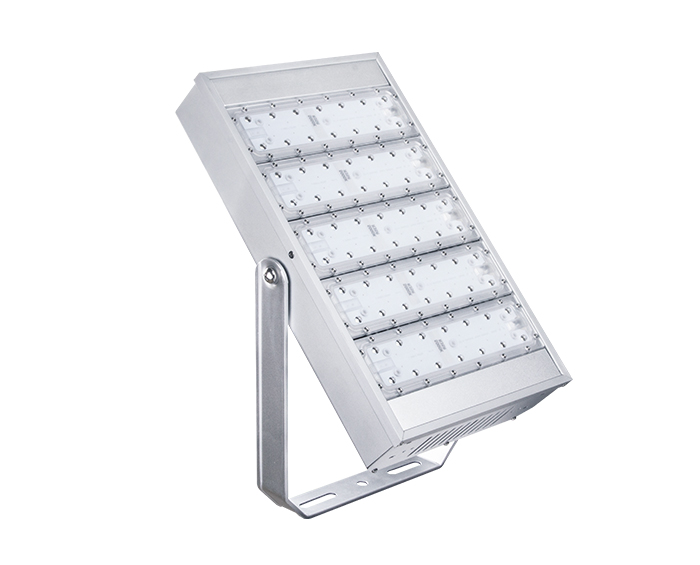

CE UL approved IP66 LED Flood Light 200W

IP66 LED Flood Light 200w adopts modular design, efficient heat dissipation, multi-angle spectrum optional, 360° adjustable bracket to meet any installation angle, and IP66 waterproof rating allows you to use in outdoor environments with confidence. We also have other products with modular designs, welcome to purchase.

Inquire Now Produit suivant

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 40W~360W.

2. Special circuit design, single LED damage won't affect others' normal work.

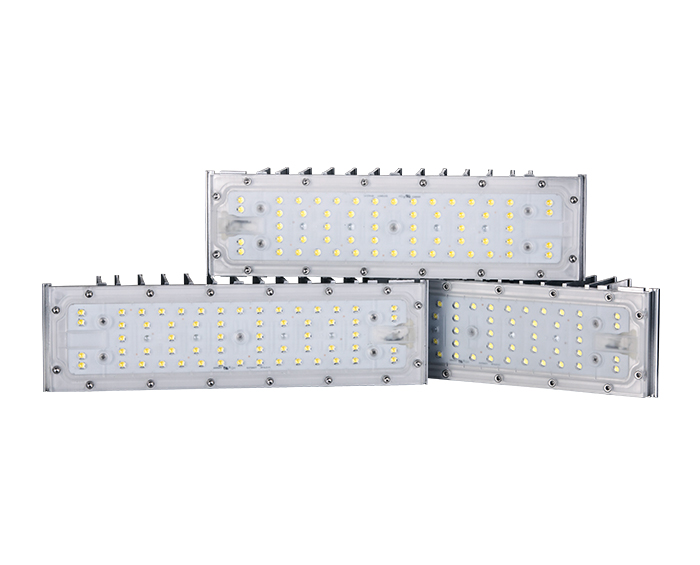

3. Modular design for easy installation, replacement, and maintenance.

4. High Lumen output up to 165lm/ w with high-quality LED chips.

5. Various applications with different mounting Accessories.

6. Multiple lighting control options are available, e.g. DALI, 1-10V, and motion sensor.

7. Designed to last at least 100, 000 hours at L70.

8. Multiple lighting distributions are available.

Specifications

Model	ZGSM-FGD200H
LED Brand	Lumileds LUXEON® TX
Driver Brand	Meanwell HLG series
Normal Wattage	200W
LED Module Quantity	5 modules
Input Voltage	100-240/277/347/480VAC
Power Efficiency	>90%
Power Factor	>0.95
Lamp Rated Luminous Efficiency	>110 lm/w
Lamp Rated Lumen output	22000 lm (Lumen tolerance +/- 5%)
Color Rendering Index	Ra>70
Color Temperature	3000K, 4000K, 5000K, or 5700K
Photometric Type	60,90,110 degrees
Optimal Operating Temperature	25℃
Storage Temperatures	-40°C~50°C
Working Environment	Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion	< 10%
Lumen Maintenance	> 100,000 hours -L70, @25 ºC (77 ºF)
Body	Stretching Aluminum
Cover	PC lens
Rating	IP66 IK10
Protection	Class I ( Class II optional)
Certification	CE, ROHS, GS, CB, UL, cUL, DLC, LM-79
Dimming Options	1-10V or DALI or PWM or Timer
Control Options	Motion sensor or Smart control
Color Options	Silver
Warranty	7 years

FAQ

What is the IP66 rating of the lighting?

IP66 means that the product is completely dustproof and protects against high-pressure water jets from any direction. The IP67 lamp is completely protected against solid particles and can be immersed in water for 1m for up to 30 minutes. The IP66-rated enclosure has a rugged design and construction for general outdoor use. The IP66-rated enclosure provides excellent performance for many environments, including outdoor safety devices.
