Gas Station LED Canopy Light

Home  /  Products / LED Canopy Light / Gas Station LED Canopy Light
  • CE 150w Gas Station led canopy light fixtures
  • CE 150w Gas Station led canopy light fixtures
  • CE 150w Gas Station led canopy light fixtures
  • CE 150w Gas Station led canopy light fixtures
  • CE 150w Gas Station led canopy light fixtures

CE 150w Gas Station led canopy light fixtures

CE 150w Gas Station LED Canopy Light Fixtures are designed for outdoor roofs with open sides – called canopies in architecture. These luminaires can be found in the outdoor areas of commercial buildings such as airports, bus stations, car dealers, convenience stores, covered car parks, shopping mall facades, and petrol stations.

PRODUCT VIDEO

PRODUCT DESCRIPTION

Key Features

1. Wide power range: 40W~240W.

2. Special circuit design, single LED damage won't affect others' normal work.

3. Modular design for easy installation, replacement, and maintenance.

4. High Lumen output up to 165lm/ w with high-quality LED chips.

5. ATEX Certified, available for the explosive area.

6. Multiple lighting control options are available, e.g. DALI, 1-10V, motion sensor.

7. Designed to last at least 100, 000 hours at L70.

8. Multiple lighting distributions are available.

Specifications

ModelZGSM-QD150H5
LED BrandLumileds LUXEON 3030/5050

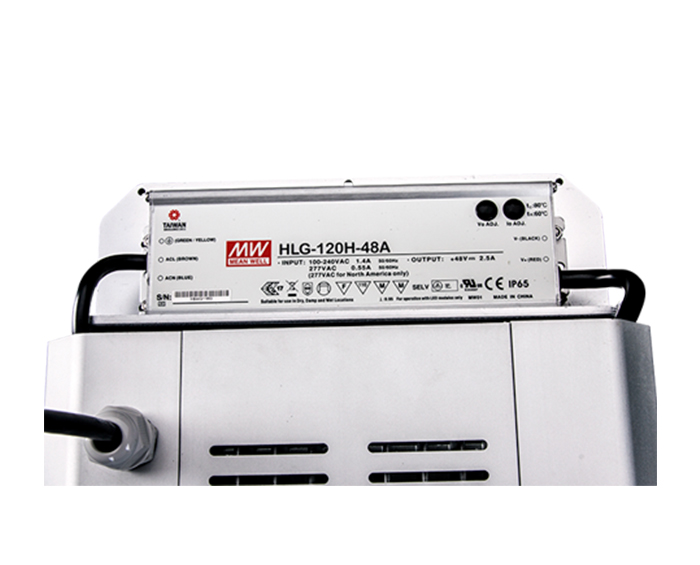

Driver BrandMeanwell HLG series
Normal Wattage150W
LED Module Quantity3 modules
Input Voltage100-240/277/347/480VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency130-160 lm/w
Lamp Rated Lumen output19500-24000 lm (Lumen tolerance +/- 5%)
Color Rendering Index70 (80 is optional)
Color Temperature3000K, 4000K, 5000K, or 5700K
Photometric Type60, 90, 110 degrees
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
BodyStretching Aluminum
CoverPC lens
RatingIP66 IK10
Protection Class I ( Class II optional)
CertificationCE,ROHS,LM80,ATEX
Dimming Options1-10V or DALI or PWM or Timer
Control OptionsMotion sensor or Smart control
Color OptionsSilver
Warranty7 years

FAQ

How far away should the recessed light be from the ceiling fan?

A rule of thumb to keep in mind is that the distance between the blade edge and the downlight is at least 600 mm to minimize the chance of interference. However, don't take this as a definitive measurement, as accuracy undoubtedly depends on your space itself and the associated lights.


How to install the recessed light?

Whether you're installing recessed lights in a new building or retrofitting a room, start by planning your light locations. Then mark the planned location before drilling or cutting any holes.

· Use the templates provided with your lighting kit to draw the outline of each opening.

· Use a stud detector to ensure that the holes do not overlap the brackets.

· Drill a 1/4 inch hole in the ceiling in the center of the planned opening.

· If necessary, enter the attic and make sure there are no wires, pipes, or plumbing systems behind the planned openings.

· Cut the larger holes with a gypsum board saw and mark all the glowing positions.

· Be careful not to get stuck with any wires that may be in the ceiling cavity.
